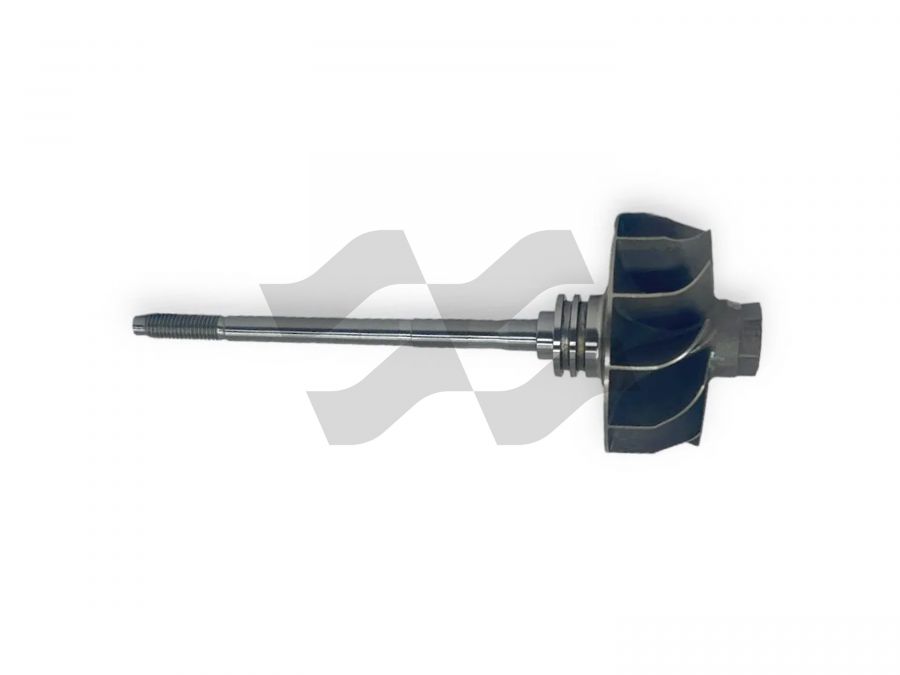

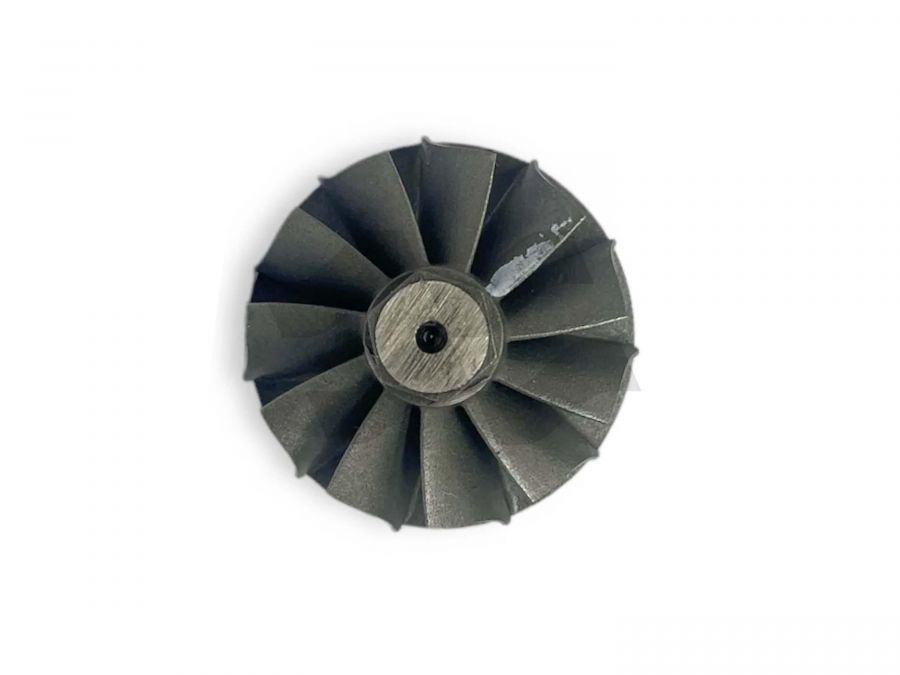

Turbine rotor 819976-0021 8570082L10

GA-02-0152 - Part Dimensions and Features

Blades (Number of shaft and wheel blades): 11

Rotation (Shaft & Wheel rotation direction): Standard

Type (Shaft & Wheel type): Straight

Back (Shaft & Wheel back type): Full

P.R. (Number of Shaft & Wheel Piston Rings): Twin

A (Size A): 43.00

A1 (Size A1): 43.00

B (Size B): 39.50

C (Size C): 8.82

D (Size D): 6.00

E (Size E): 5.08

H (Size H): 19.00

L (Size L): 93.00

T (Size T): M5.0X0.8LH

---

The impeller fits the following turbochargers:

• 819976-0007, 819976-5007S, 8570082D03, 819976-0010, 819976-5010S, 85700820000, 8570082E04, 819976-0012, 819976-5012S, 8570082F05, 8570082G06, 1165475465201, 819976-0014, 819976-5014S, 8570082H07, 819976-0015, 819976-5015S, 857008208, 8570082I08, 8570082J08, 819976-0016, 819976-5016S, 8570082J09, 819976-0021, 819976-5021S, 8570082L10, 819976-0024, 819976-5024S, 8570082M11, 819976-0025, 819976-5025S, 857008212, 11658570083, 819976-0012, 819976-5012, 857008306, 819977-0001, 11658570080F06, 819977-0013, 819977-5013S, 8570080F06, 819977-0014, 819977-5014S, 8570080G07, 819977-0015, 819977-5015S, 8570080H08, 819977-0016, 819977-5016S, 8570080I09, 819977-0019, 819977-5019S, 8570080J10, 116585708011, 819977-0020, 819977-5020S, 8570080J11, 842093-0003, 857921203, 842093-0004, 857921204, 842093-0007, 842093-0008, 842093-0009, 842093-5009S, 8579212-07, 845210-0001, 55278618, 853741-0001, 853741-5001S, 46338265, 853741-0004, 853741-5004S, 55279544, 856473-0001, 856473-5001S, 8570082G06, 911445-0001, 911445-5001S, 911445-9001S

---
