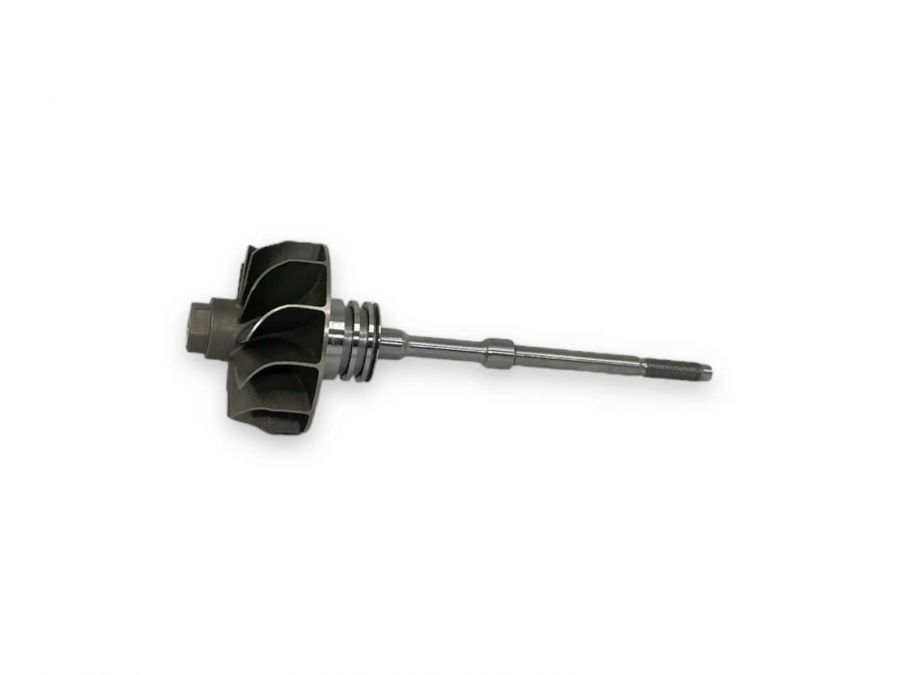

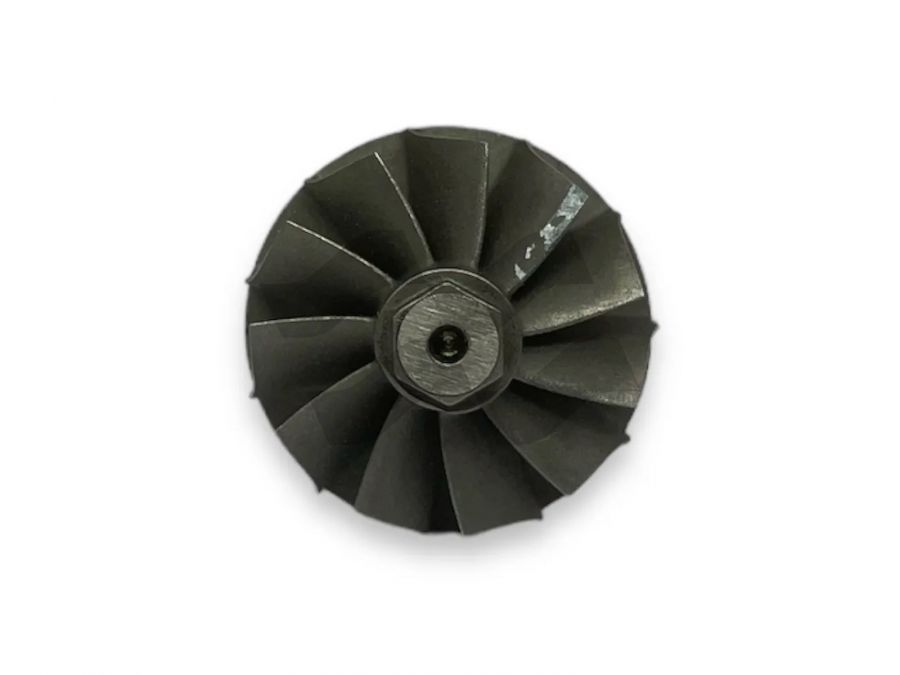

Turbine shaft 54409700024 8513636

Part Dimensions and Features:

Blades (Number of shaft and wheel blades): 9

Rotation (Shaft & Wheel rotation direction): Standard

Type (Shaft & Wheel type): Slender

Back (Shaft & Wheel back type): Full

P.R. (Number of piston rings on shaft and wheel): Twin

A (Size A): 40.00

A1 (Size A1): 37.50

B (Size B): 35.60

C (Size C): 6.41

D (Size D): 6.00

E (Size E): 4.10

H (Size H): 17.50

L (Size L): 83.00

T (Size T): M4.0X0.5LH

Fits turbochargers with the following designations:

• 54409980046, 54409710046, 54409700046, 54409980043, 54409710043, 54409700043, 54409710044, 54409710042, 54409710041, 54409710039, 54409710038, 54409710034, 54409710033, 54409710032, 54409710031, 54409710025, 54409710024, 54409700044, 54409700042, 54409700041, 54409700039, 54409700038, 54409700034, 54409700033, 54409700032, 54409700031, 54409700025, 54409700024, 5440 970 0024, 8513635, 5440 970 0025, 8513640, 5440 970 0031, 5440 970 0032, 5440 970 0033, 5440 970 0034, 5440 970 0038, 5440 970 0039, 5440 970 0041, 5440 970 0042, 11658513635, 5440 970 0043, 5440 998 0043, 5440 970 0044, 851364006, 11658513640, 1165851364107, 5440 970 0046, 5440 998 0046, 5440 971 0024, 5440 971 0025, 8513641, 5440 971 0031, 5440 971 0032, 5440 971 0033, 5440 971 0034, 5440 971 0038, 5440 971 0039, 5440 971 0041, 5440-971-0041, 5440 971 0042, 11658513636, 1165851363608, 5440 971 0043, 8513636, 5440 971 0044, 11658513641, 5440 971 0046

---

Date updated: 2026-03-04 15:58:12
