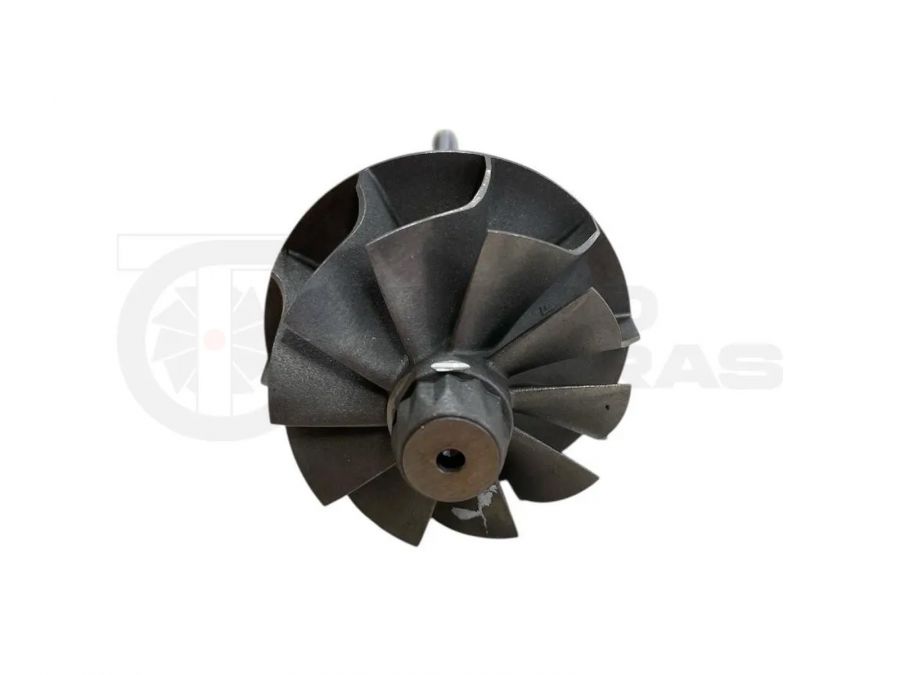

Turbine shaft 18509700016
Dimensions
- A Size A
- 50.00 mm
- A1 Size A1
- 50.00 mm
- B Size B
- 43.60 mm
- C Size C
- 7.54 mm
- D Size D
- 8.47 mm
- E Size E
- 5.61 mm
- H Size H
- 21.00 mm
- L Size L
- 108.00 mm
About product
BW-02-0127 - Part Dimensions and Features
Blades (Number of shaft and wheel blades): 10
Rotation (Shaft & Wheel rotation direction): Reverse
Type (Shaft & Wheel type): Straight
Back (Shaft & Wheel back type): Full
P.R. (Number of Shaft & Wheel Piston Rings): Twin
A (Size A): 50.00
A1 (Size A1): 50.00
B (Size B): 43.60
C (Size C): 7.54
D (Size D): 8.47
E (Size E): 5.61
H (Size H): 21.00
L (Size L): 108.00
T (Size T): M5.5X0.8RH
BW-02-0127 - Compatible with turbochargers with the following numbers:
18509710016, 18509700016, 18509710015, 18509700015, 18509700029, 18509700025, 10009710383, 18509700024, 18509700010, 10009700206, 10009700205, 18509700006, 10009700191, 10009710384, 10009710381, 10009710377, 10009710376, 10009710359, 10009710286, 10009710234, 10009710225, 10009710205, 10009700432, 10009700385, 10009700384, 10009700383, 10009700382, 10009700381, 10009700378, 10009700377, 10009700376, 10009700359, 10009700358, 10009700313, 10009700286, 10009700277, 10009700273, 10009700238, 10009700234, 10009700227, 10009700225, 10009700153, 03N145703C, 1000 970 0153, 03N145701Q, 1000 970 0225, 03N145701G, 1000 970 0227, 03N145701K, 1000 970 0234, 03N145701R, 1000 970 0238, 03N145701M, 1000 970 0273, 1000 970 0277, 03N145701L, 1000 970 0286, 03N145702, 1000 970 0313, 03N145702A, 1000 970 0358, 03N145701T, 1000 970 0359, 03N145702L, 1000 970 0376, 03N145702N, 1000 970 0377, 03N145702J, 1000 970 0378, 03N145702S, 1000 970 0381, 03N145702T, 1000 970 0382, 03N145704M, 1000 970 0383, 03N145704N, 1000 970 0384, 03N145704P, 1000 970 0385, 03N145721E, 1000 970 0432, 1000 971 0205, 03N145703R, 1000 971 0225, 03N145703M, 1000 971 0234, 03N145703N, 1000 971 0286, 03N145703T, 1000 971 0359, 03N145704C, 1000 971 0376, 03N145704, 1000 971 0377, 03N145704E, 1000 971 0381, 03N145704K, 1000 971 0384, 1000 970 0191, 1850 970 0006, 1000 970 0205, 1000 970 0206, 1850 970 0010, 03N145713A, 03N198701N, 1850 970 0015, 1850 971 0015, 03N145722D, 03N145722E, 1850 970 0024, 03N145704L, 1000 971 0383, 1850 970 0025, 1850 970 0029, 03N198701B, 1850 970 0016, 1850 971 0016
Data updated: 2025-09-05 10:52:07
Specifications
Manufacturer
SKU
BW-02-0127
Condition
New
Main number
10009700153-B03, 10009700225-B03, 10009700227-B03, 10009700234-B03, 10009700238-B03, 10009700273-B03, 10009700277-B03, 10009700286-B03, 10009700313-B03, 10009700358-B03
OEM number
03N145703C, 03N145701Q, 03N145701G, 03N145701K, 03N145701R, 03N145701M, 03N145701L, 03N145702, 03N145702A, 03N145701T, 03N145702L, 03N145702N, 03N145702J, 03N145702S, 03N145702T, 03N145704M, 03N145704N, 03N145704P, 03N145721E, 03N145703R, 03N145703M, 03N145703N, 03N145703T, 03N145704C, 03N145704, 03N145704E, 03N145704K, 03N145713A, 03N198701N, 03N145722D, 03N145722E, 03N145704L, 03N198701B
Warranty
12 months of manufacturer warranty
Delivery and Payment
Components
14 parts
