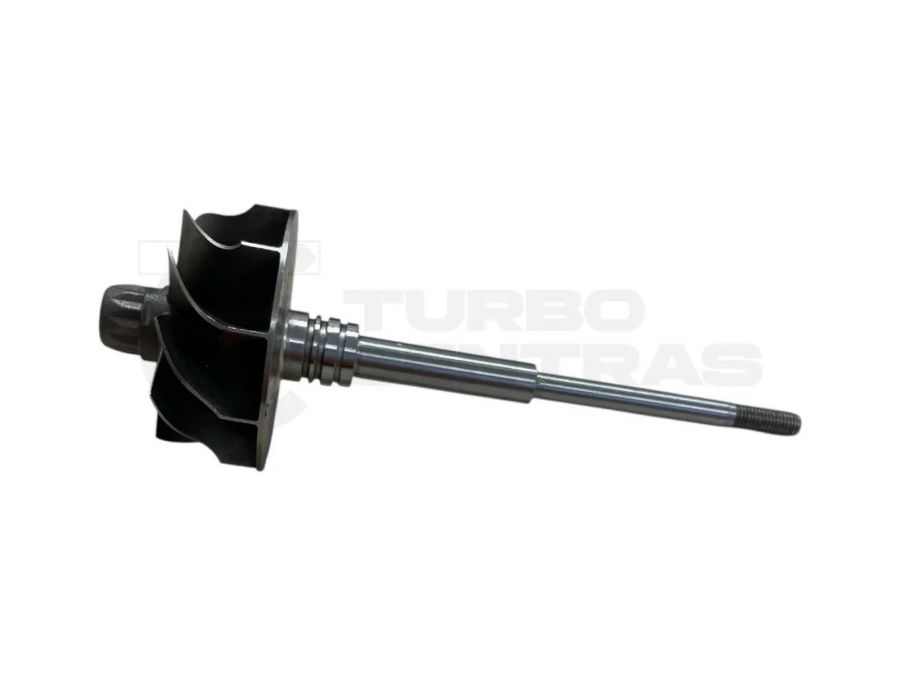

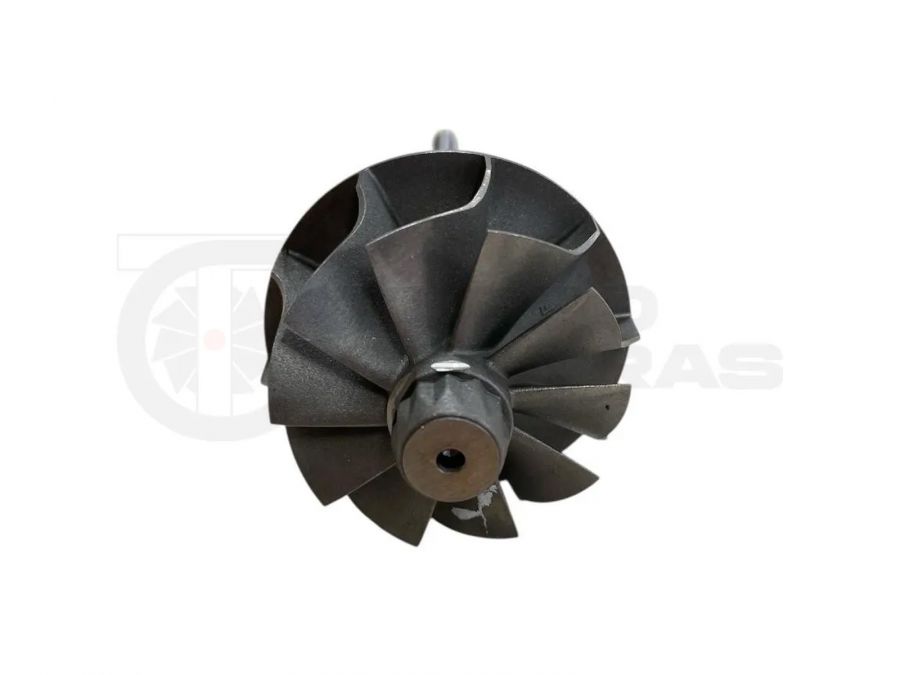

Wałek turbiny 18509700016
Wymiary
- A Size A
- 50.00 mm
- A1 Size A1
- 50.00 mm
- B Size B
- 43.60 mm
- C Size C
- 7.54 mm
- D Size D
- 8.47 mm
- E Size E
- 5.61 mm
- H Size H
- 21.00 mm
- L Size L
- 108.00 mm
O produkcie
Numery zamienne turbosprężarki lub numery turbosprężarek do których jest dedykowana część która jest przedmiotem danej oferty:
BW-02-0127 - Wymiary i cechy części
Blades (Shaft & Wheel blades count): 10
Rotation (Shaft & Wheel rotation direction): Reverse
Type (Shaft & Wheel type): Straight
Back (Shaft & Wheel back type): Full
P.R. (Shaft & Wheel piston rings count): Twin
A (Size A): 50.00
A1 (Size A1): 50.00
B (Size B): 43.60
C (Size C): 7.54
D (Size D): 8.47
E (Size E): 5.61
H (Size H): 21.00
L (Size L): 108.00
T (Size T): M5.5X0.8RH
BW-02-0127 - Pasuję do turbosprężarek o numerach:
18509710016, 18509700016, 18509710015, 18509700015, 18509700029, 18509700025, 10009710383, 18509700024, 18509700010, 10009700206, 10009700205, 18509700006, 10009700191, 10009710384, 10009710381, 10009710377, 10009710376, 10009710359, 10009710286, 10009710234, 10009710225, 10009710205, 10009700432, 10009700385, 10009700384, 10009700383, 10009700382, 10009700381, 10009700378, 10009700377, 10009700376, 10009700359, 10009700358, 10009700313, 10009700286, 10009700277, 10009700273, 10009700238, 10009700234, 10009700227, 10009700225, 10009700153, 03N145703C, 1000 970 0153, 03N145701Q, 1000 970 0225, 03N145701G, 1000 970 0227, 03N145701K, 1000 970 0234, 03N145701R, 1000 970 0238, 03N145701M, 1000 970 0273, 1000 970 0277, 03N145701L, 1000 970 0286, 03N145702, 1000 970 0313, 03N145702A, 1000 970 0358, 03N145701T, 1000 970 0359, 03N145702L, 1000 970 0376, 03N145702N, 1000 970 0377, 03N145702J, 1000 970 0378, 03N145702S, 1000 970 0381, 03N145702T, 1000 970 0382, 03N145704M, 1000 970 0383, 03N145704N, 1000 970 0384, 03N145704P, 1000 970 0385, 03N145721E, 1000 970 0432, 1000 971 0205, 03N145703R, 1000 971 0225, 03N145703M, 1000 971 0234, 03N145703N, 1000 971 0286, 03N145703T, 1000 971 0359, 03N145704C, 1000 971 0376, 03N145704, 1000 971 0377, 03N145704E, 1000 971 0381, 03N145704K, 1000 971 0384, 1000 970 0191, 1850 970 0006, 1000 970 0205, 1000 970 0206, 1850 970 0010, 03N145713A, 03N198701N, 1850 970 0015, 1850 971 0015, 03N145722D, 03N145722E, 1850 970 0024, 03N145704L, 1000 971 0383, 1850 970 0025, 1850 970 0029, 03N198701B, 1850 970 0016, 1850 971 0016
Dane zaktualizowane: 2025-09-05 10:52:07
Specyfikacja
Producent
SKU
BW-02-0127
Stan
Nowy
Główny numer
10009700153-B03, 10009700225-B03, 10009700227-B03, 10009700234-B03, 10009700238-B03, 10009700273-B03, 10009700277-B03, 10009700286-B03, 10009700313-B03, 10009700358-B03
Numer OEM
03N145703C, 03N145701Q, 03N145701G, 03N145701K, 03N145701R, 03N145701M, 03N145701L, 03N145702, 03N145702A, 03N145701T, 03N145702L, 03N145702N, 03N145702J, 03N145702S, 03N145702T, 03N145704M, 03N145704N, 03N145704P, 03N145721E, 03N145703R, 03N145703M, 03N145703N, 03N145703T, 03N145704C, 03N145704, 03N145704E, 03N145704K, 03N145713A, 03N198701N, 03N145722D, 03N145722E, 03N145704L, 03N198701B
Gwarancja
12 miesięcy gwarancji producenta
Dostawa i płatność
Komponenty
14 części
