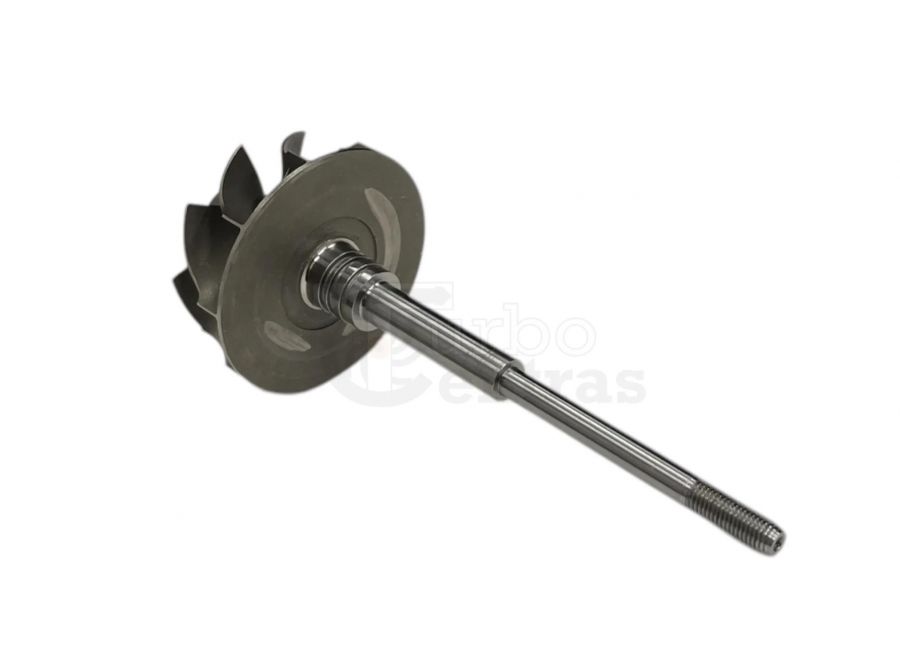

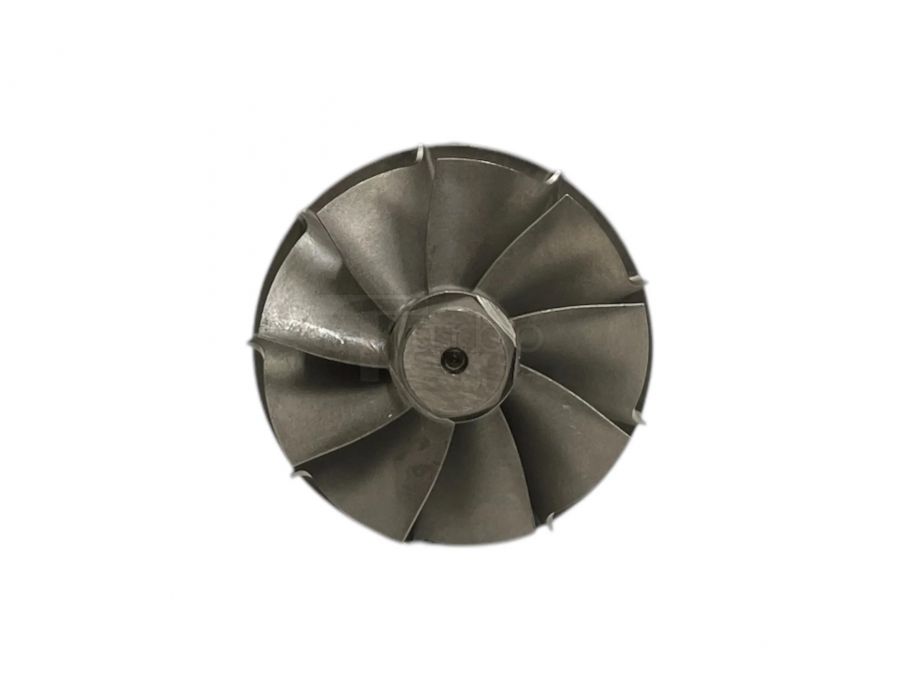

Turbine shaft G4D36K682BE 10009700130

BW-02-0121 - Part Dimensions

Blades (Number of shaft and wheel blades): 9

Rotation (Shaft & Wheel rotation direction): Reverse

Type (Shaft & Wheel type): Straight

Back (Shaft & Wheel back type): Full

P.R. (Number of piston rings on shaft and wheel): Twin

A (Size A): 53.00

A1 (Size A1): 53.00

B (Size B): 47.20

C (Size C): 7.52

D (Size D): 8.47

E (Size E): 5.61

H (Size H): 21.00

L (Size L): 108.00

T (Size T): M5.5X0.8RH

BW-02-0121 - Used in turbines

10009700451, 10009700431, 10009700366, 10009700324, 10009700284, 10009700268, 10009700210, 10009700131, 1000 970 0131, G4D3-6K682-BE, G4D36K682BE, 1000 970 0210, 6540900180, A6540900180, AL0082Q01, 1000 970 0268, 6540900280, A6540900280, 1000 970 0284, 6540900480, A6540900480, 1000 970 0324, 6540909100, A6540909100, 1000 970 0366, 6540901401, 6540908800, A6540901401, A6540908800, 1000 970 0431, A6540906301, 1000 970 0451, 6540909001, A6540909001

Data updated: 2026-03-04 16:20:05
