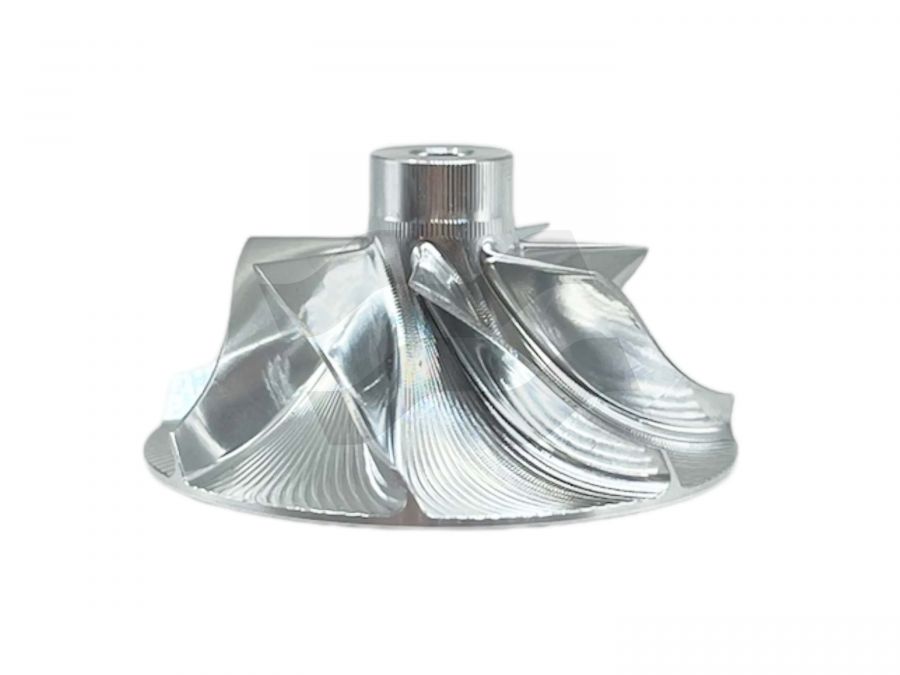

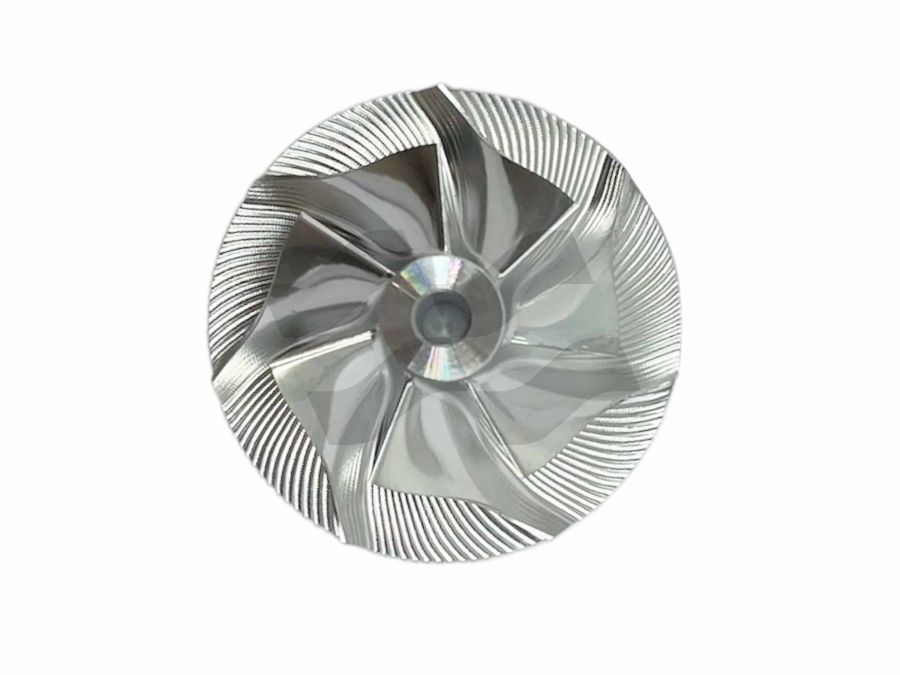

Turbine compression wheel G4D36K682BE 16359700005

BW-03-0158 - Part Dimensions and Specifications

Blades (Number of compressor wheel blades): 7

Rotation (Compressor wheel rotation direction): Standard

Type (Compressor wheel manufacturing method): Billet

Back (Compressor wheel back design): Super

A (Size A): 41.00

A1 (Size A1): 41.00

B (Size B): 28.80

C (Size C): 3.85

C1 (Size C1): 2.80

D (Size D): 23.70

E (Size E): 4.11

---

Compression Ring BW-03-0158 - Compatible Turbochargers

PRODUCENT TURBOSPRĘŻARKI	MODEL TURBOSPRĘŻARKI	TURBO PART NUMBERS	TURBO OE NUMBERS
BorgWarner	B01V-R2S	1000 970 0130, 1635 970 0005	G4D3-6K682-CF, G4D36K682CF
BorgWarner	B01V-R2S	1000 970 0131, 1635 970 0006	G4D3-6K682-BE, G4D36K682BE

---

BW-03-0158 - Compatible with the following turbochargers:

• 16359700006, 10009700131, 16359700005, 10009700130, 1000 970 0130, 1635 970 0005, G4D3-6K682-CF, G4D36K682CF, 1000 970 0131, 1635 970 0006, G4D3-6K682-BE, G4D36K682BE

---
