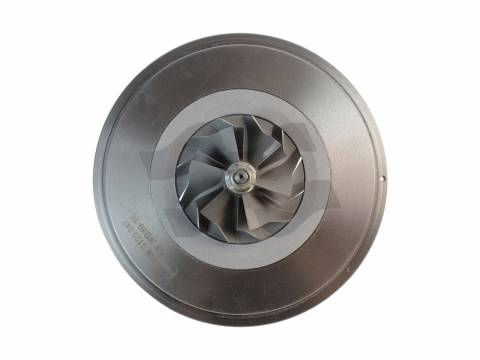

Shaft and wheel for 764381-0001

Dimensions of the Shaft and wheel:

Blades (Shaft & Wheel blades count): 9

Rotation (Shaft & Wheel rotation direction): Standard

Type (Shaft & Wheel type): Straight

Back (Shaft & Wheel back type): Full

P.R. (Shaft & Wheel piston rings count): Twin

A (Size A): 47.00

A1 (Size A1): 47.00

B (Size B): 43.00

C (Size C): 9.30

D (Size D): 7.90

E (Size E): 5.10

F (Size F): 56.80

G (Size G): 33.20

H (Size H): 21.00

L (Size L): 99.00

T (Size T): M5X0.8LH

Shaft and wheel fits to the next turbochargers:

• 764381-0001 764381-0002 764381-5002S 764381-0003 764381-0004 764381-5004S 764809-0001 764809-0002 764809-5002S 764809-0003 764809-0004 764809-5004S 767878-0001 767878-5001S 777318-0001 777318-0002 777318-5002W 777318-9002W 777318-0003 777318-5003W 781743-0001 781743-5001S781743-0003 781743-5003S 781745-0001 781745-5001S 789773-0006 789773-5006S 789773-0009 789773-5009S 789773-0013 789773-5013S789773-0018 789773-5018S 789773-0026 789773-5026S 789773-0028 789773-5028S 789773-0030 789773-5030S 789773-9030S 789773-0032 789773-5032S 796122-0001 796122-0005796122-0007 796122-5007S 796399-0001 796399-0004 796399-5004S 796399-0005 796399-5005S 796399-0006 796399-5006S 796399-0007 796399-5007S 796399-0015 796399-5015S 796399-9015S 821142-0001 821142-5001S 840513-0001 887552-0001 887552-5001S
• A6420900880 A6420901680 55208456 A6420908580 6420905780 A6420905780 6420905780 A6420905780 A6420905580 504359632 504376936 504371348 504371348 5801768036 5801951700 5802355023 5802511435 504373677 504373677 5801894255 504364177 504364766 5801894252 7005070C2 A6420901100
