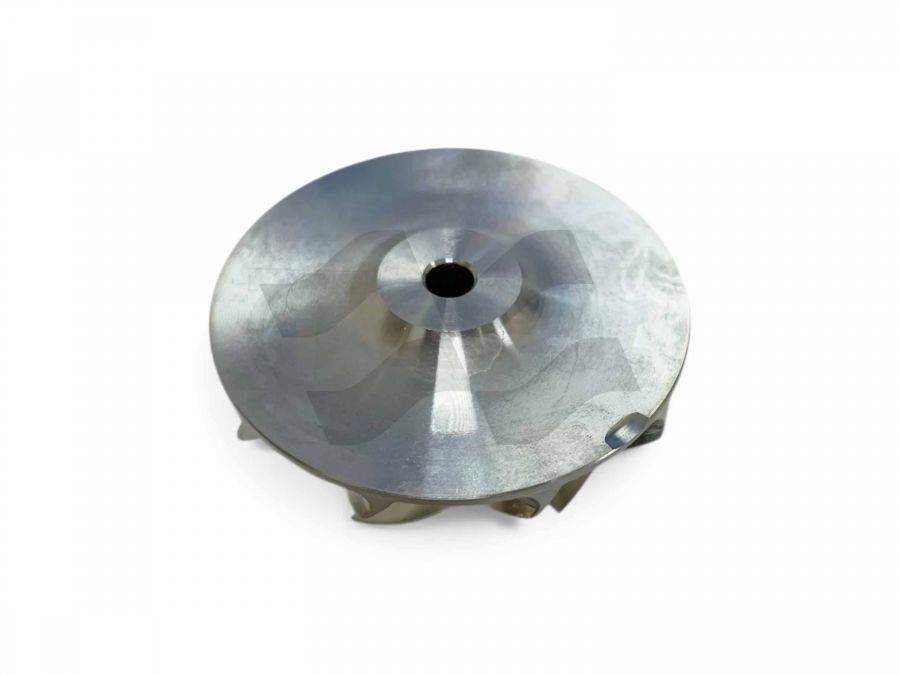

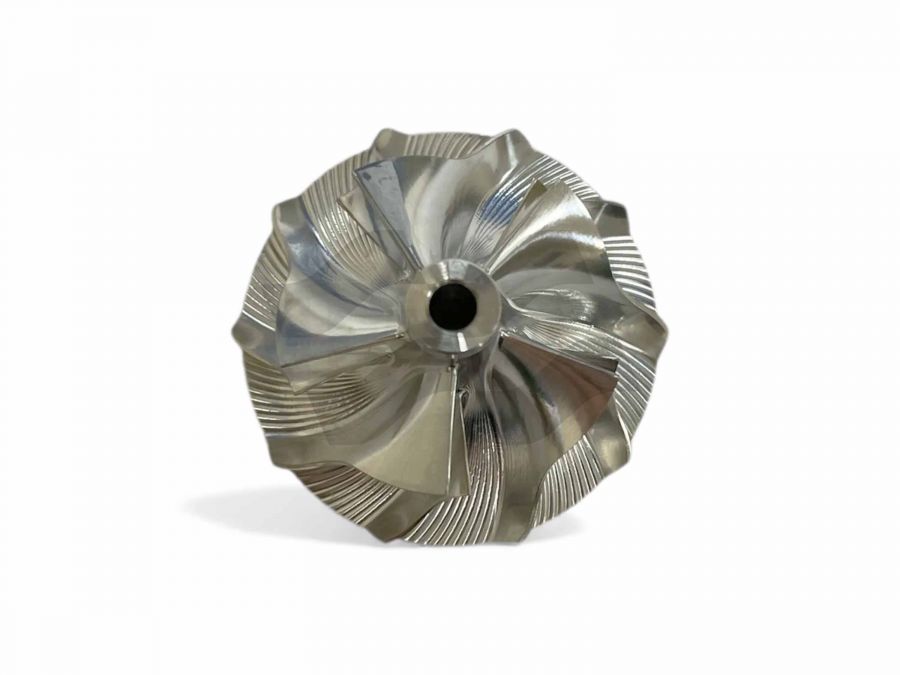

Compression wheel for 16359700039 144102267R

BW-03-0177 - Part Dimensions and Features

Blades (Number of compressor wheel blades): 5/5

Rotation (Compressor wheel rotation direction): Reverse

Type (Compressor wheel manufacturing method): Billet

Back (Compressor wheel back design): Super

A (Size A): 41.00

A1 (Size A1): 42.50

B (Size B): 31.80

C (Size C): 3.18

C1 (Size C1): 2.80

D (Size D): 23.70

E (Size E): 4.11

BW-03-0177 - Used in turbines

16359700099, 16359700069, 16359700058, 16359880057, 16359700057, 16359700039, 16359880029, 16359700029, 16359700025, 16359700011, 16359700008, 16359700003, 16359500030, 1635 950 0030, 144114668R, 1635 970 0003, 144113313R, 1635 970 0008, 144113657R, 144118807R, 1635 970 0011, 144109240R, 144109643R, 1635 970 0025, 144116419R, 144116763R, 1635 970 0029, 1635 988 0029, 6070900400, 144102267R, 14412267R, 1635 970 0039, 144108425R, 144109984R, 1635 970 0057, 1635 988 0057, 1635 970 0058, 144109500R, 1635 970 0069, 1635 970 0099

Data updated: 2025-09-03 09:11:29
