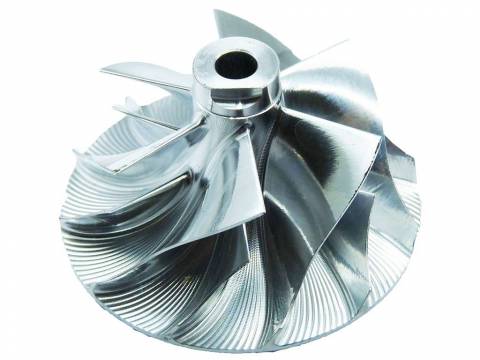

Compressor wheel 817808-0011

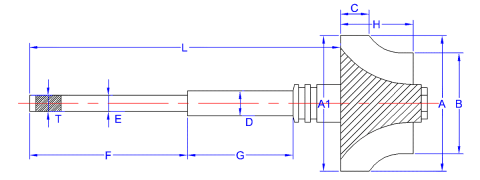

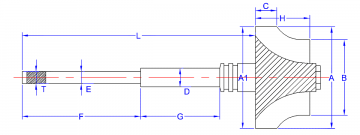

Dimensions
- A Size A
- 46.00 mm
- A1 Size A1
- 46.00 mm
- B Size B
- 35.60 mm
- C Size C
- 4.10 mm
- C1 Size C1
- 4.00 mm
- D Size D
- 25.00 mm
- E Size E
- 4.08 mm
About product
GA-03-0022 - Compressor wheel
Brand: TurboCentras
TurboCentras Reference: GA-03-0022
GA-03-0022 - Alternative numbers
TCP (TurboCentras part number): GA-03-0022
TCO (TurboCentras old part number): GT14-09B
GA-03-0022 - Compatibility table
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
|---|---|---|---|---|
| Garrett | MGT1446S | 817808-0011 | 817808-0011, 817808-5011S | 06K145701R |
| Garrett | MGT1446OZ | 817808-0013 | 817808-0013 | 06K145701R |
| Garrett | MGT1446OZ | 817808-0015 | 817808-0015 | -- |
| Garrett | MGT1446S | 830233-0005 | 830233-0005, 830233-5005S | 06K145701G, 06K145701R, 06K145721B |
| Garrett | MGT1446S | 830233-0007 | 830233-0007, 830233-5007S | 06K145721D |
| Garrett | MGT1446S | 830233-0013 | 830233-0013, 830233-5013S | 06K145721L |
| Garrett | MGT1446S | 830233-0015 | 830233-0015, 830233-5015S | 06K145721P |
GA-03-0022 - Part Properties
Blades (Compressor wheel blades count): 9
Rotation (Compressor wheel rotation direction): Reverse
Type (Compressor wheel production method type): Billet
Back (Compressor wheel back design): Deep Super
A (Size A): 46.00
A1 (Size A1): 46.00
B (Size B): 35.60
C (Size C): 4.10
C1 (Size C1): 4.00
D (Size D): 25.00
E (Size E): 4.08
GA-03-0022, GT14-09B
06K145701R, 817808-0011, 817808-5011S, 06K145701R, 817808-0013, 817808-0015, 06K145701G, 06K145701R, 06K145721B, 830233-0005, 830233-5005S, 06K145721D, 830233-0007, 830233-5007S, 06K145721L, 830233-0013, 830233-5013S, 06K145721P, 830233-0015, 830233-5015S
Data updated: 2025-02-04 17:38:25
Specifications
Manufacturer:
SKU:
GA-03-0022
Serial number:
GT14-09B
Main number:
CW-1213BR, 817808-0011, 817808-0013, 817808-0015, 830233-0005, 830233-0007, 830233-0013, 830233-0015
OEM number:
06K145701R, 06K145701G, 06K145721B, 06K145721D, 06K145721L, 06K145721P
