Main Shop Compressor wheels Compressor wheel ih-03-0022

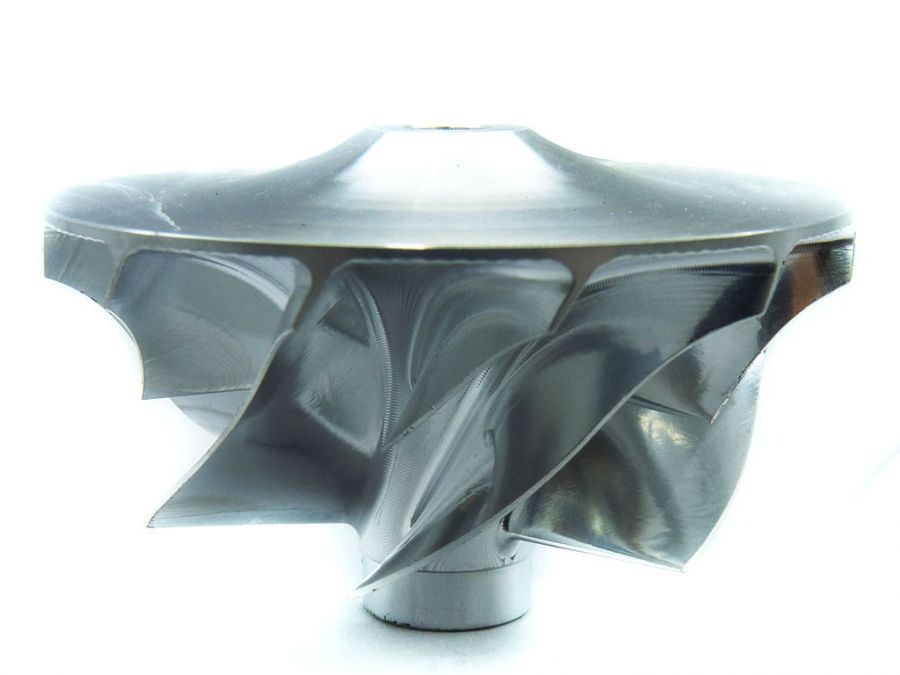

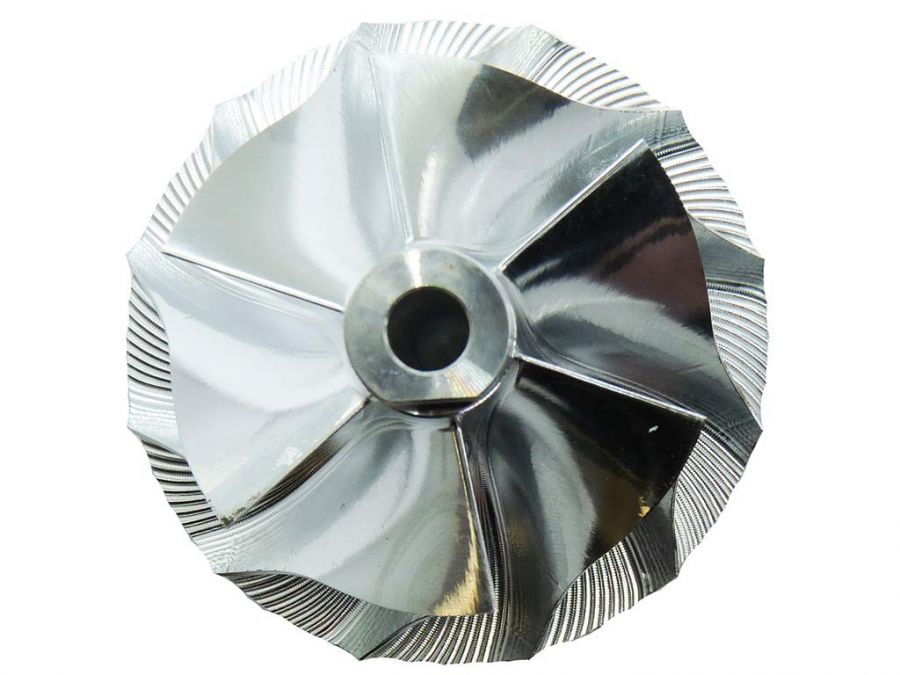

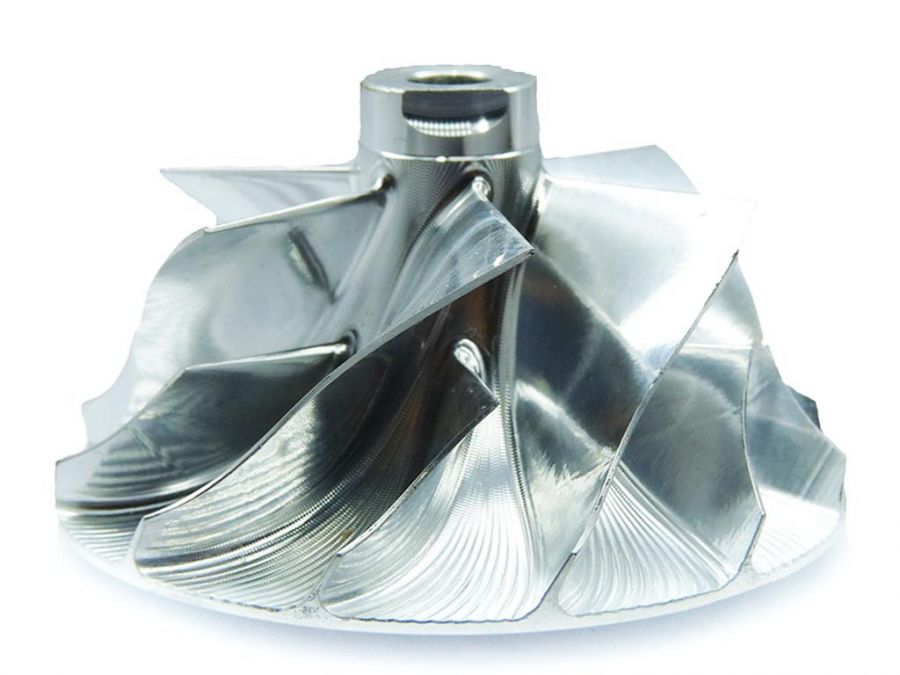

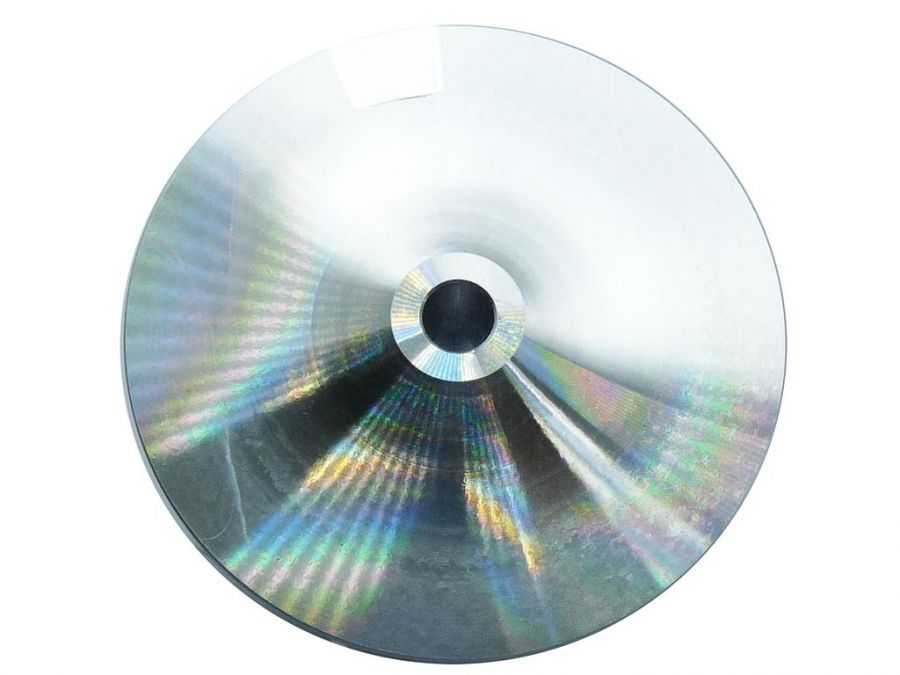

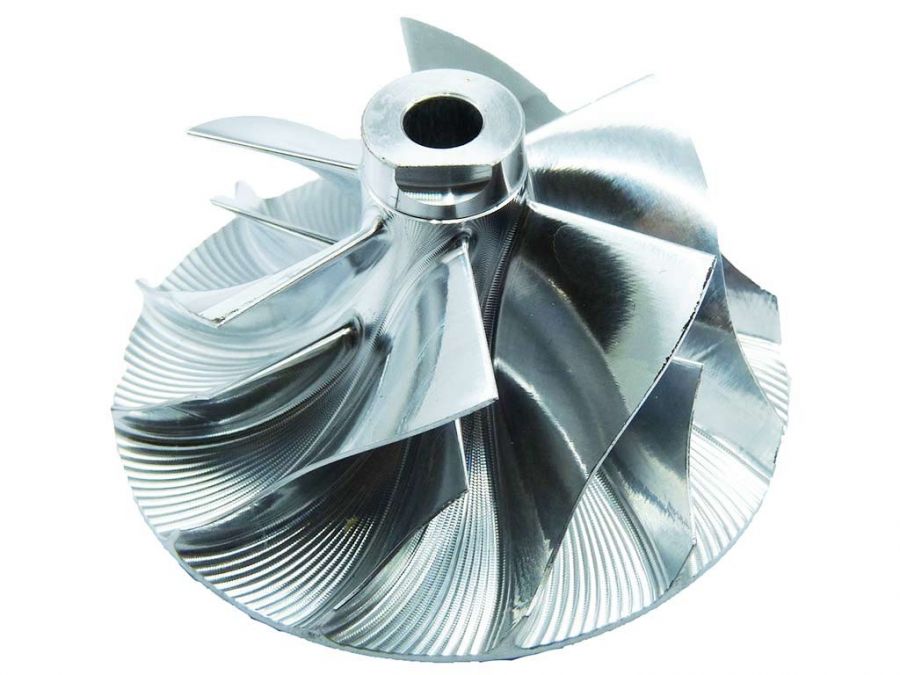

Compressor wheel IH-03-0022

Name: Compressor wheel IH-03-0022
Brand: TurboCentras
SKU: IH-03-0022
Price: 38.56 EUR
Availability: InStock

Add to favorites

31.35 €

38.56 € with VAT

Remaining 2 pcs.

A Size A: 48.00 mm
A1 Size A1: 48.00 mm
B Size B: 37.20 mm
C Size C: 4.35 mm
C1 Size C1: 3.85 mm
D Size D: 29.70 mm
E Size E: 5.10 mm

About product

06K145701E, 06K145701G, 06K145701J, 06K145701L, 06K145701M, 06K145701N, 06K145701S, 06K145701T, 06K145713E, 06K145713F, 06K145713G, 06K145713H, 06K145713J, 06K145713K, 06K145713L, 06K145721G, 06L145654A, 06L145654C, 06L145654D, 06L145654E, 06L145654F, 06L145654G, 06L145701A, 06L145701B, 06L145701C, 06L145701D, 06L145701E, 06L145701F, 06L145701G, 06L145701H, 06L145701J, 06L145701K, 06L145701L, 06L145721C, 06L145721D, 06L145721F, 06L145721G, 06K145721C, F41CAF-SR050B

IH-03-0022 - Koło kompresji

Marka: TurboCentras

TurboCentras Reference: IH-03-0022

IH-03-0022 - Alternative numbers

TCP (TurboCentras part number): IH-03-0022

TCO (TurboCentras old part number): RHF4-12B

IH-03-0022 - Compatibility table

Compressor wheel IH-03-0022 - Compatible turbochargers
TURBO MAKER	TURBO MODEL	TURBO REFERENCE	TURBO PART NUMBER	TURBO OE NUMBER
IHI	RHF4	9VA06	9VA06, F41CEG-SR028B	06K145701E, 06K145701J, 06K145701L, 06K145701M, 06K145701N, 06K145701S, 06K145701T, 06K145713J, 06K145721G, 06K145721Q
IHI	RHF4	9VA07	9VA07, F41CEG-SR029B	06K145713E, 06K145713F, 06K145713G, 06K145713H, 06K145713K, 06K145713L
IHI	RHF4	9VA08	9VA08, F41CEG-SR030B	06L145654F, 06L145654G, 06L145701A, 06L145701B, 06L145701C, 06L145701D, 06L145701E, 06L145701F, 06L145701G, 06L145701H, 06L145701J, 06L145701K, 06L145701L
IHI	JHJ	9VA24	9VA24	06L145721C, 06L145721D, 06L145721F, 06L145721G

IH-03-0022 - Part Properties

IH-03-0022

Blades (Compressor wheel blades count): 6/6

Rotation (Compressor wheel rotation direction): Reverse

Type (Compressor wheel production method type): Billet

Back (Compressor wheel back design): Super

A (Size A): 48.00

A1 (Size A1): 48.00

B (Size B): 37.20

C (Size C): 4.35

C1 (Size C1): 3.85

D (Size D): 29.70

E (Size E): 5.10

IH-03-0022, RHF4-12B

06K145701E, 06K145701J, 06K145701L, 06K145701M, 06K145701N, 06K145701S, 06K145701T, 06K145713J, 06K145721G, 06K145721Q, 9VA06, F41CEG-SR028B, 06K145713E, 06K145713F, 06K145713G, 06K145713H, 06K145713K, 06K145713L, 9VA07, F41CEG-SR029B, 06L145654F, 06L145654G, 06L145701A, 06L145701B, 06L145701C, 06L145701D, 06L145701E, 06L145701F, 06L145701G, 06L145701H, 06L145701J, 06L145701K, 06L145701L, 9VA08, F41CEG-SR030B, 06L145721C, 06L145721D, 06L145721F, 06L145721G, 9VA24
