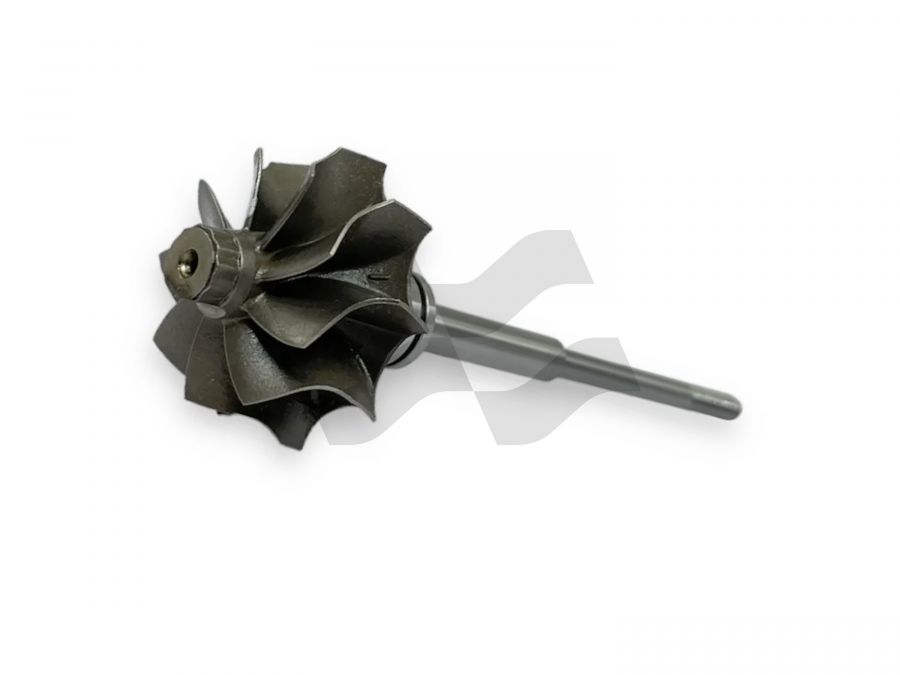

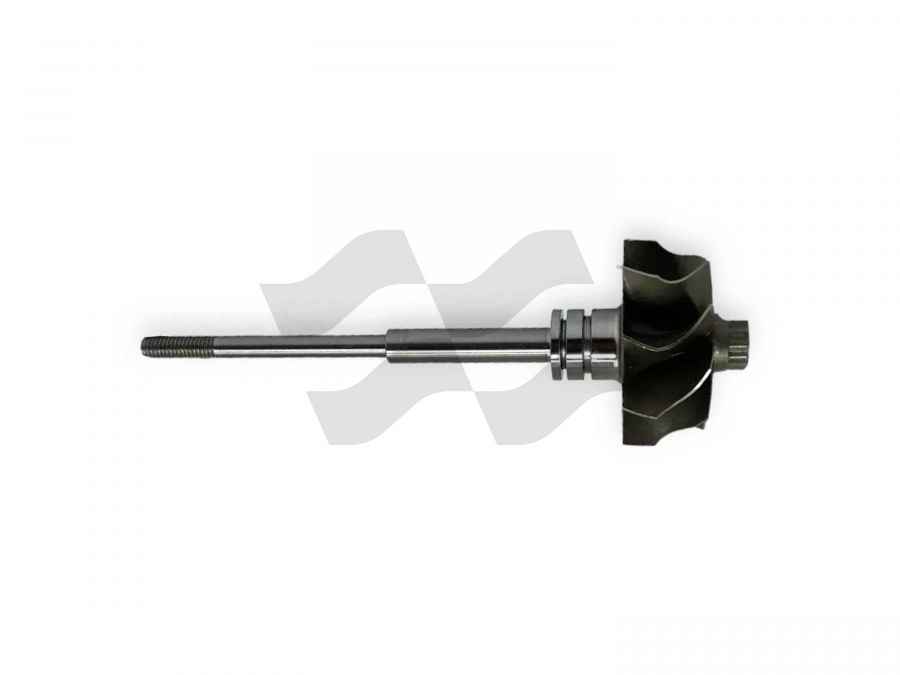

Turbine shaft 49172-03000 9804945280

MH-02-0029 - Part Dimensions

Blades (Number of shaft and wheel blades): 9

Rotation (Shaft & Wheel rotation direction): Standard

Type (Shaft & Wheel type): Straight

Back (Shaft & Wheel back type): Open

P.R. (Number of Shaft & Wheel Piston Rings): Single

A (Size A): 34.20

A1 (Size A1): 34.20

B (Size B): 28.95

C (Size C): 5.45

D (Size D): 6.00

E (Size E): 4.00

H (Size H): 14.50

L (Size L): 83.00

T (Size T): M4.0X0.7LH

---

The impeller is compatible with the following turbochargers:

• 49172-03000, 49172-03100, 49172-04020
• 9813245480, 9804945280, 13900-86P00, 13900-86P01-000
