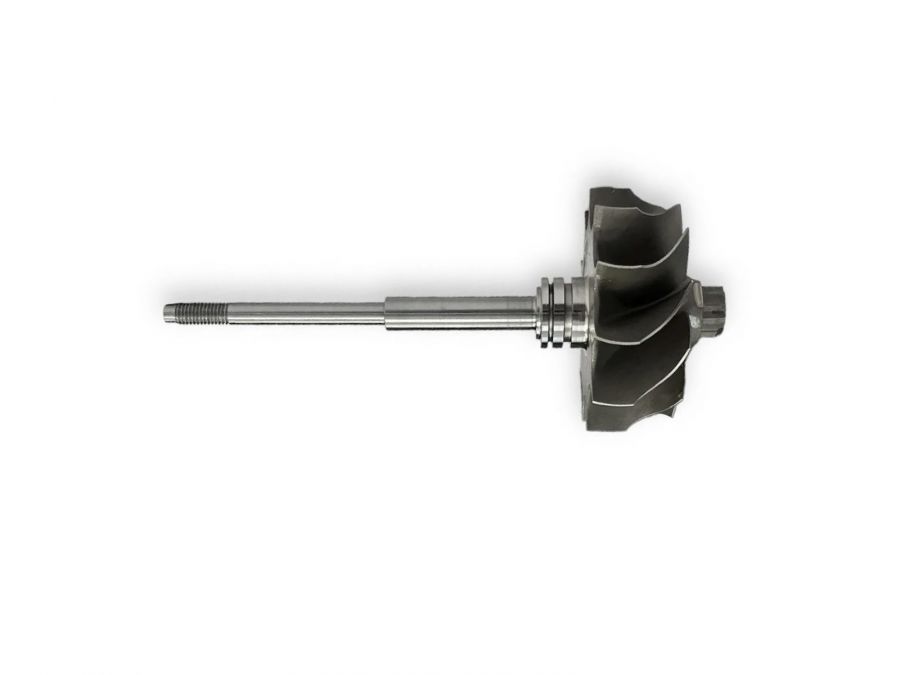

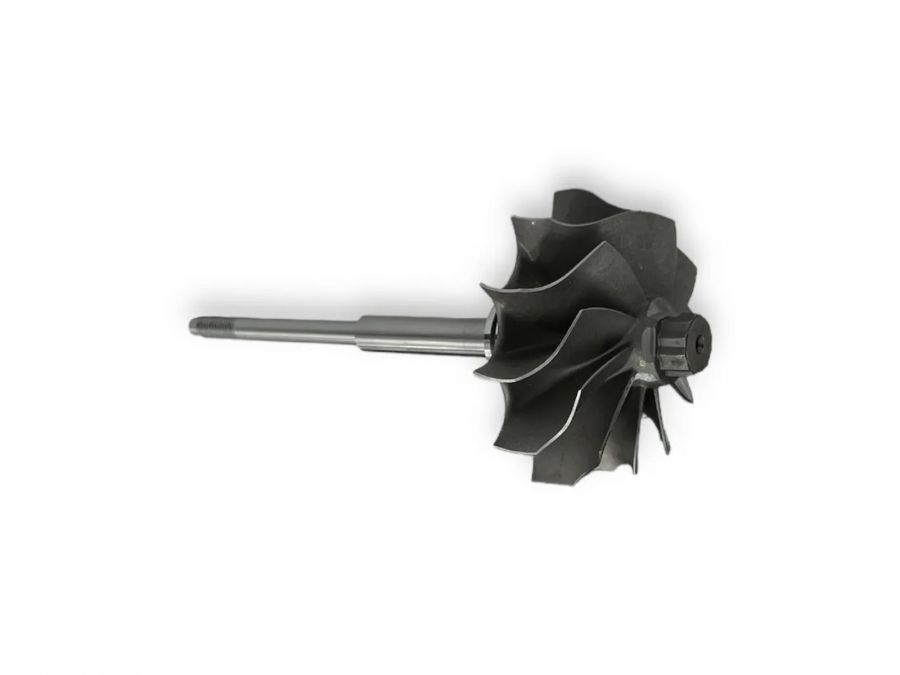

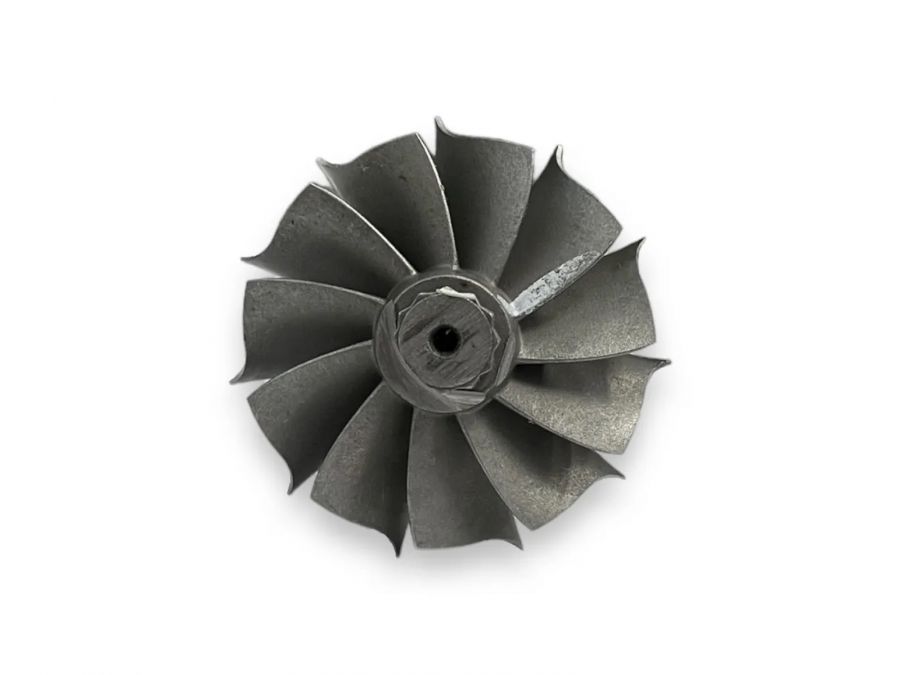

Turbine shaft 49189-07210 ME223610

MH-02-0028 - Part Dimensions

Blades (Number of shaft and wheel blades): 11

Rotation (Shaft & Wheel rotation direction): Standard

Type (Shaft & Wheel type): Straight

Back (Shaft & Wheel back type): Open

P.R. (Number of Shaft & Wheel Piston Rings): Single

A (Size A): 52.10

A1 (Size A1): 52.10

B (Size B): 45.65

C (Size C): 8.47

D (Size D): 7.50

E (Size E): 5.00

H (Size H): 19.00

L (Size L): 93.00

T (Size T): M5.0X0.8LH

Designed for turbochargers with the following numbers:

• 314-9972, 49189-02720, 49189-02721, 49189-02730, 49189-02730, 49189-02750, 49189-02750, 49189-06500, 49189-06501, 49189-06502, 14411AA460, 49189-06550, 14411AA461, 49189-06551, 04884820AC, 49189-07210, 05047246AA, 49189-07220, 05047246AB, 49189-07230, 49389-02043, ME223610, 49389-02050, ME226938, 49389-02060, ME226939, 49389-02070, ME228854, 49389-02110, ME443813, 49389-02120, ME225832, 49389-02201, ME226891, 49389-02211, ME226892, 49389-02231, ME226894, 49389-02241, ME227155, 49389-02251, ME227577, 1J500-17012, 49389-03000, 1J500-17013, 49389-03001, 1J500-17014, 49389-03002, 1J501-17012, 49389-03010, 1J501-17013, 49389-03011, 1J501-17014, 49389-03012, 1J541-17012, 49389-03020, 1J541-17013, 49389-03021, 1J541-17014, 49389-03022, 1J540-17012, 49389-03030, 49389-04140, 49389-05700, 49389-05701, 49389-05710, SMW252192, 49389-05720, SMW253353, 49389-05730, SMW253356, 1118010-85K, 49691-57902, 28231-2G430, 90126-01110, 28231-2G410, 90142-01030, 28231-2G420, 90142-01031, 28231-2C600, 90142-01080, L0412079

Date updated: 2025-02-12 16:56:43
