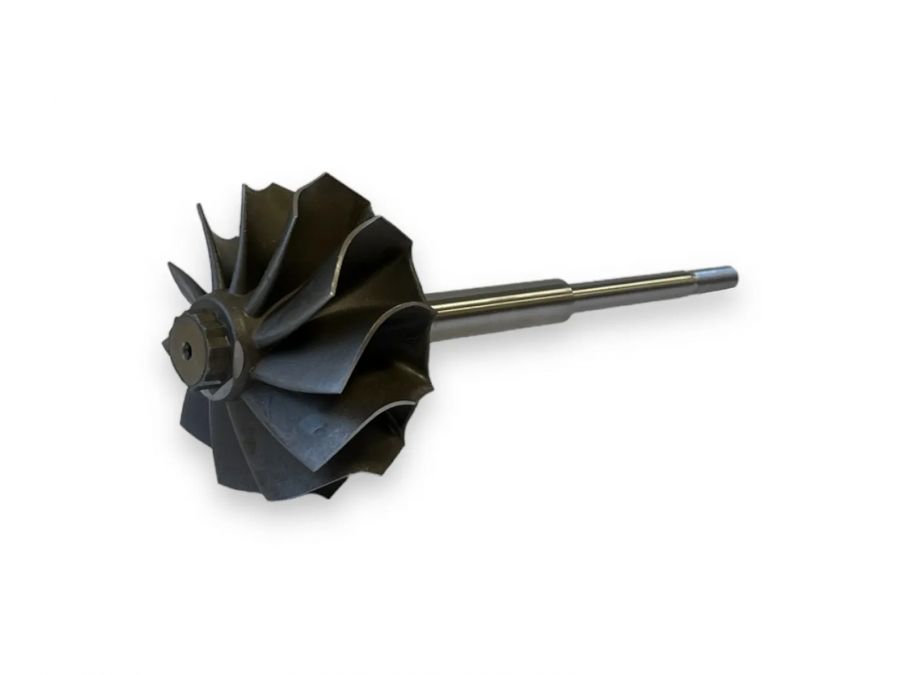

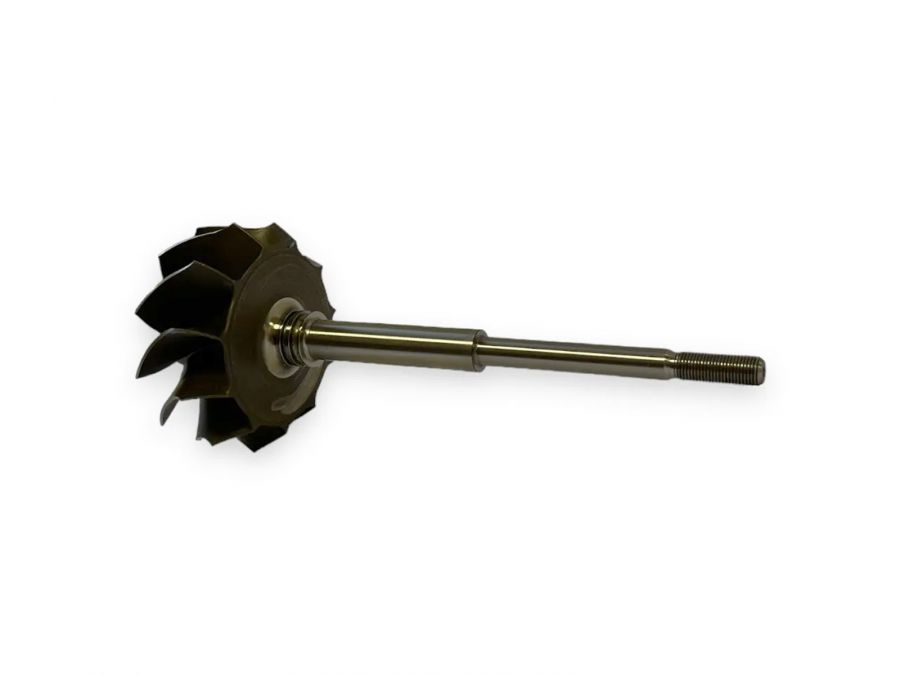

Turbine Shaft 114400-3890 VB57
Dimensions
- A Size A
- 69.50 mm
- A1 Size A1
- 58.00 mm
- B Size B
- 64.20 mm
- C Size C
- 10.70 mm
- D Size D
- 11.40 mm
- E Size E
- 7.70 mm
- H Size H
- 30.00 mm
- L Size L
- 134.00 mm
About product
IH-02-0046 - Part Dimensions and Features
Blades (Number of shaft and wheel blades): 11
Rotation (Shaft & Wheel rotation direction): Standard
Type (Shaft & Wheel type): Straight
Back (Shaft & Wheel back type): Open
P.R. (Number of Shaft & Wheel Piston Rings): Single
A (Size A): 69.50
A1 (Size A1): 58.00
B (Size B): 64.20
C (Size C): 10.70
D (Size D): 11.40
E (Size E): 7.70
H (Size H): 30.00
L (Size L): 134.00
T (Size T): M7.0X0.75LH
| TURBO MAKER | TURBO MODEL | TURBO PART NUMBERS | TURBO OE NUMBERS |
|---|---|---|---|
| IHI | RHE62W-118003P20NWBRB584CCZ | E61CAD-S0022B, MYAX, V*720022, VA720022, VB720022, VC720022 | 119773-18010 |
| IHI | RHE62-118003P22NWBRB584CCZ | 6T-609, MYBH, VA720033, VB720033, VC720033, VD720033 | 119775-18010 |
| IHI | RHE62W-118003P22NWBRB584CCZ | E61CAD-S0086B, E61CAD-S0086G, MYEV, V*720086, VA720086 | 119775-18150 |
| IHI | RHG6 | VA570019, VB57, VB570019 | 114400-3890 |
| IHI | RHE62-96001QZ27NABRL543CAZ | E61CAD-S0016B, V*720016, VA720016, VA720041, VB720016, VB720041, VC720016, VC720041, VD720016, VE720016, VIAX | 8943900610, 8943900611, 8943900612, 8943900613, 8943919061, 8943919062, 8943919063, 8943956820 |
| IHI | RHE62-116001QZ25NABRL543CAZ | E61CAD-S0017B, V*720017, VA720017, VB720017, VC720017, VD720017, VE720017, VIAY | 8943900590, 8943900591, 8943900592, 8943900593, 8943956800 |
| IHI | RHE6 | VP11 | Q36-543-2 |
IH-02-0046 - Used in turbines
119773-18010, E61CAD-S0022B, MYAX, V*720022, VA720022, VB720022, VC720022, 119775-18010, 6T-609, MYBH, VA720033, VB720033, VC720033, VD720033, 119775-18150, E61CAD-S0086B, E61CAD-S0086G, MYEV, V*720086, VA720086, 114400-3890, VA570019, VB57, VB570019, 8943900610, 8943900611, 8943900612, 8943900613, 8943919061, 8943919062, 8943919063, 8943956820, E61CAD-S0016B, V*720016, VA720016, VA720041, VB720016, VB720041, VC720016, VC720041, VD720016, VE720016, VIAX, 8943900590, 8943900591, 8943900592, 8943900593, 8943956800, E61CAD-S0017B, V*720017, VA720017, VB720017, VC720017, VD720017, VE720017, VIAY, Q36-543-2, VP11
Date updated: 2026-03-06 13:38:24
Specifications
Manufacturer:
SKU:
IH-02-0046
Serial number:
IH-02-0046
Main number:
MYAX, MYBH, MYEV, VB57, VIAX, VIAY, VP11
OEM number:
119773-18010, 119775-18010, 119775-18150, 114400-3890, 8943900610, 8943900611, 8943900612, 8943900613, 8943919061, 8943919062, 8943919063, 8943956820, 8943900590, 8943900591, 8943900592, 8943900593, 8943956800, Q36-543-2
