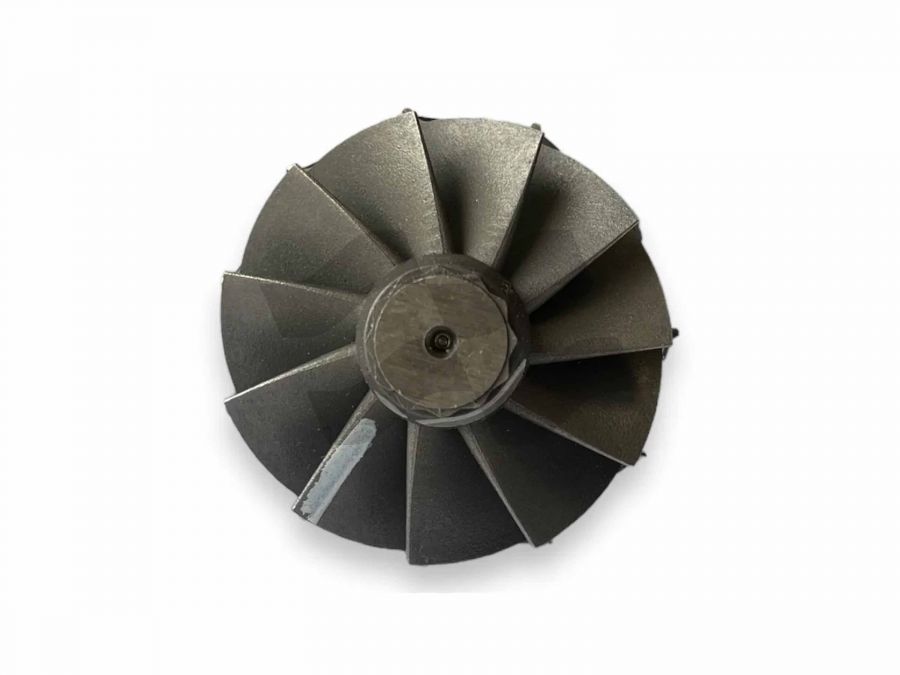

Turbine shaft for F56CND-S0031B IH-02-0045
Dimensions
- A Size A
- 56.00 mm
- A1 Size A1
- 56.00 mm
- B Size B
- 50.90 mm
- C Size C
- 11.90 mm
- D Size D
- 9.00 mm
- E Size E
- 6.10 mm
- H Size H
- 27.40 mm
- L Size L
- 112.00 mm
About product
This part is compatible with the following turbocharger replacement numbers:
IH-02-0045 - Compatibility table
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
|---|---|---|---|---|
| IHI | RHF55-117003P20NHBRL449CA | CIES | CIES, F56CND-S0031B, F56CND-S0031G, VA440031, VB440031, VC440031 | 8-97362-8390, 8973628390 |
| IHI | RHF55-117003P20NHBRL449CA | CIFK | 5T-649, CIFK, F56CND-S0051B, F56CND-S0051G, VA440051, VB440051, VC440051 | 8-98030-2170, 8980302170 |
| IHI | RHF55 | CIJG | CIJG, F56CAD-S0095B, F56CAD-S0095G | 8982593710 |
IH-02-0045 - Part Properties
Blades (Shaft & Wheel blades count): 11
Rotation (Shaft & Wheel rotation direction): Standard
Type (Shaft & Wheel type): Straight
Back (Shaft & Wheel back type): Open
P.R. (Shaft & Wheel piston rings count): Single
A (Size A): 56.00
A1 (Size A1): 56.00
B (Size B): 50.90
C (Size C): 11.90
D (Size D): 9.00
E (Size E): 6.10
H (Size H): 27.40
L (Size L): 112.00
T (Size T): M6.0X0.75LH
IH-02-0045
8-97362-8390, 8973628390, CIES, F56CND-S0031B, F56CND-S0031G, VA440031, VB440031, VC440031, 5T-649, 8-98030-2170, 8980302170, CIFK, F56CND-S0051B, F56CND-S0051G, VA440051, VB440051, VC440051, 8982593710, CIJG, F56CAD-S0095B, F56CAD-S0095G
Data updated: 2025-02-12 17:05:38
