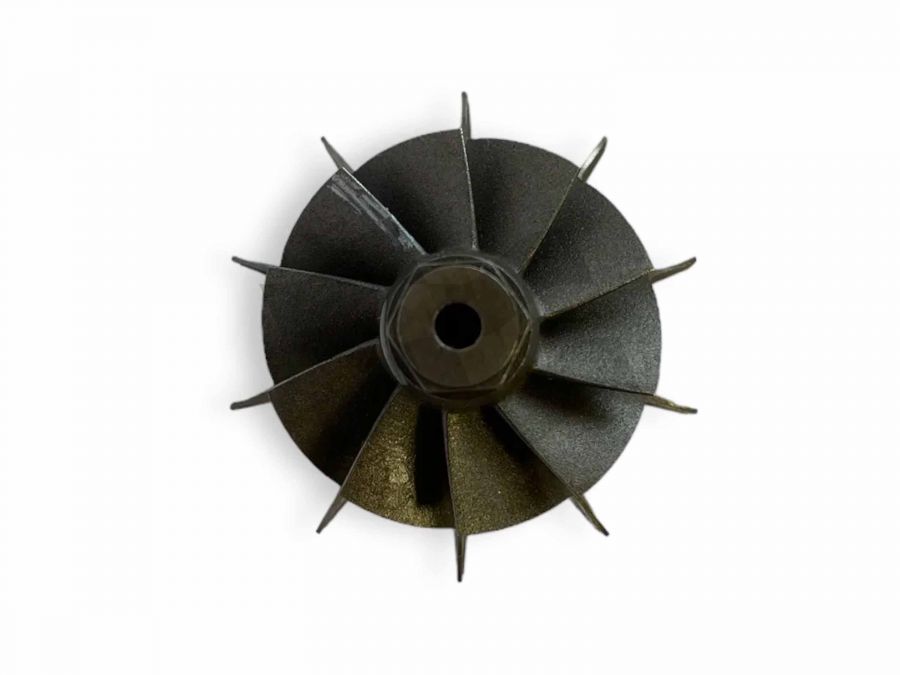

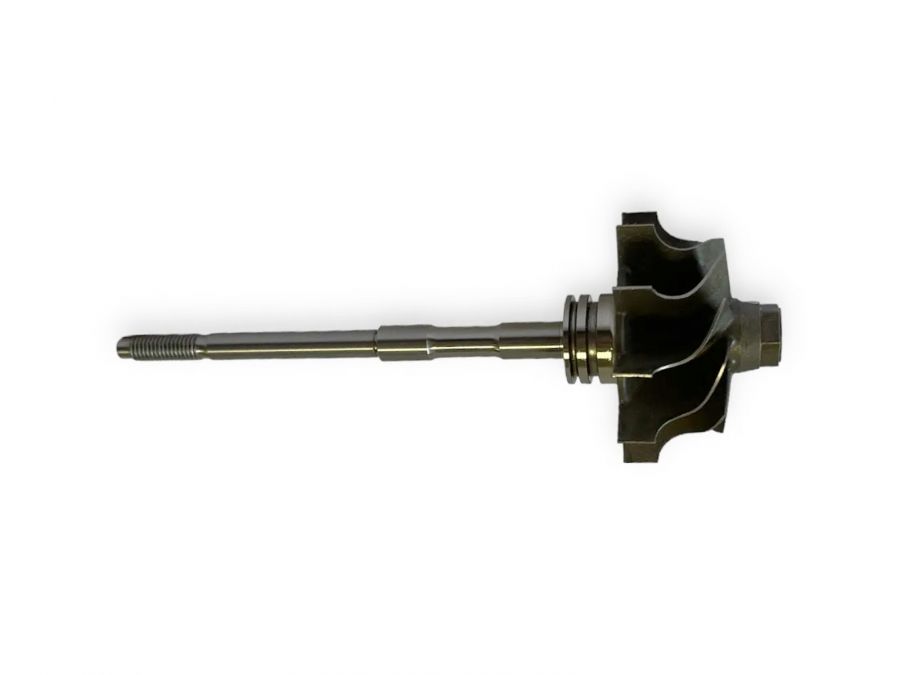

Turbine shaft 701729-0001 045145701J

GA-02-0154 - Part Properties

Blades (Number of shaft and wheel blades): 10

Rotation (Shaft & Wheel rotation direction): Standard

Type (Shaft & Wheel type): Slender

Back (Shaft & Wheel back type): Open

P.R. (Number of Piston Rings for Shaft and Wheel): Single

A (Size A): 42.20

A1 (Size A1): 42.20

B (Size B): 32.20

C (Size C): 5.91

D (Size D): 6.50

E (Size E): 5.08

H (Size H): 18.00

L (Size L): 92.50

T (Size T): M5.0X0.8LH

---

Fits the following turbochargers:

• 045145701, 701729-0001, 701729-5001S, 045145701V400, 701729-0003, 701729-5003S, 045145701V405, 701729-0006, 701729-5006S, 045145701V500, 701729-0009, 701729-5009S, 045145701J, 701729-0010, 701729-5010S, 701729-0015, 045145701C, 706680-0001, 706680-5001S, 045253019D, 045253019G, 045253019L, 720243-0001, 720243-5001S, 045253019D, 045253019G, 045253019L, 720243-0002, 720243-5002S, 733783-0002, 045253019GV405, 733783-0004, 733783-5004S, 733783-0005, 045253019GV500, 733783-0007, 733783-5007S, 045253019L, 733783-0008, 733783-5008S, 045253019FV500, 742989-0002, 742989-5002S, 045253019N, 742989-0003, 742989-5003S

---

Date updated: 2024-07-10 16:01:21
