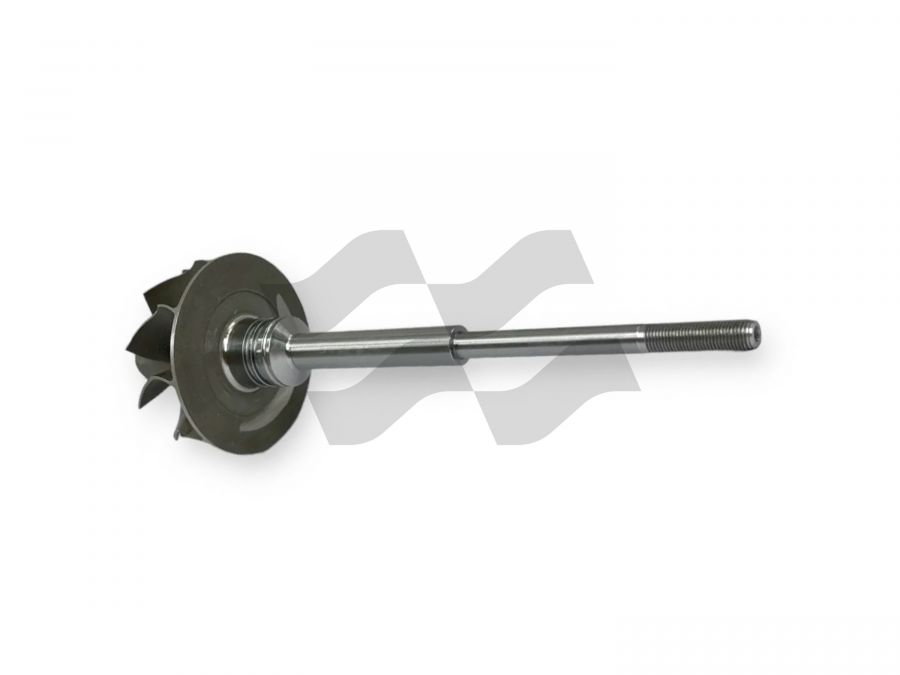

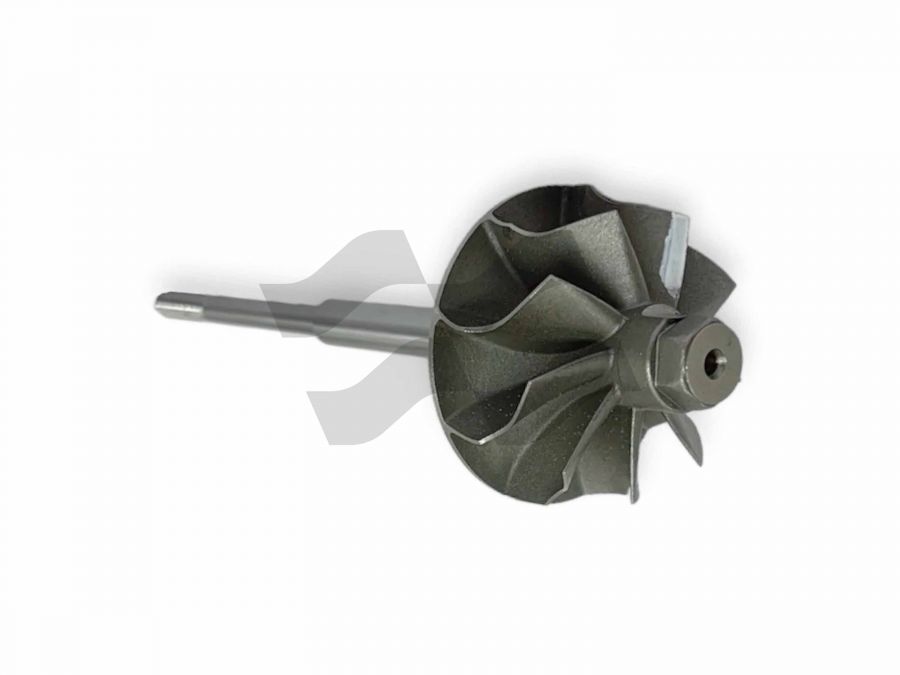

Turbine shaft 54409700030 28231-2F670

BW-02-0118 - Part Properties

Blades (Number of shaft and wheel blades): 9

Rotation (Shaft & Wheel rotation direction): Standard

Type (Shaft & Wheel type): Straight

Back (Shaft & Wheel back type): Full

P.R. (Number of Piston Rings for Shaft and Wheel): Twin

A (Size A): 40.00

A1 (Size A1): 40.00

B (Size B): 35.60

C (Size C): 6.65

D (Size D): 7.00

E (Size E): 4.61

H (Size H): 17.50

L (Size L): 98.00

T (Size T): M4.5X0.5LH

---

The impeller is compatible with the following turbochargers:

• 54409880030, 54409700030, 53039880373, 53039700709, 53039700719, 53039700711, 53039700373, 53039880358, 53039700358, 53039700341, 53039700278, 53039700268, 14411-3XN1A, 5303 970 0268, 28231-2F770, 5303 970 0278, 14411-3XN2A, 5303 970 0341, 28231-2F350, 5303 970 0358, 5303 988 0358, 14411-3XN3A, 5303 970 0373, 14411-3XN3C, 5303 970 0711, 14411-3XN3D, 5303 970 0719, 14411-3XN3B, 5303 970 0709, 5303 988 0373, 28230-2F670, 28231-2F670, 5440 970 0030, 5440 988 0030
