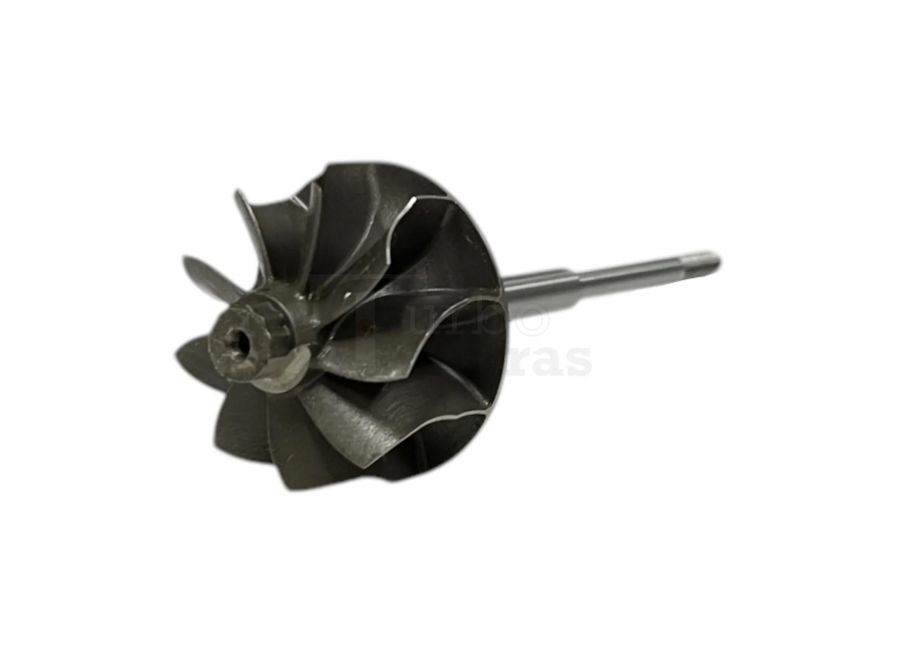

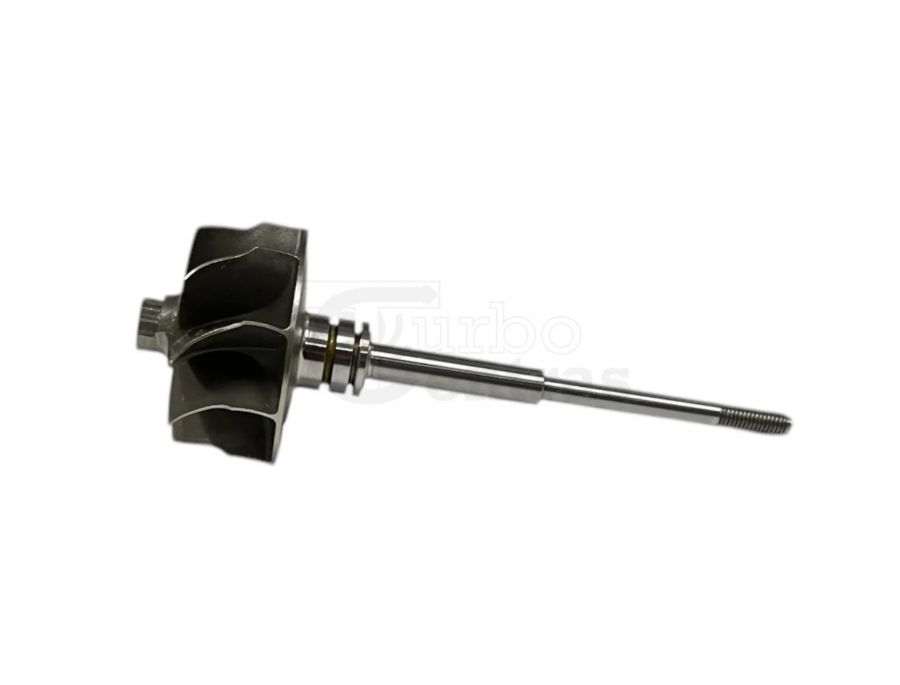

Turbine rotor 49373-07100 MC19123011063

MH-02-0032 - Part Dimensions

Blades (Number of shaft and wheel blades): 9

Rotation (Shaft & Wheel rotation direction): Standard

Back (Shaft & Wheel back type): Full

P.R. (Number of Shaft & Wheel Piston Rings): Single

A (Size A): 37.00

A1 (Size A1): 37.00

B (Size B): 34.00

C (Size C): 7.24

D (Size D): 6.00

E (Size E): 4.00

H (Size H): 18.00

L (Size L): 82.50

T (Size T): M4.0X0.7LH

MH-02-0032 - Used in turbines

49373-07100, 49373-07101, 49373-07102, MC19123011063, 49373-07103
