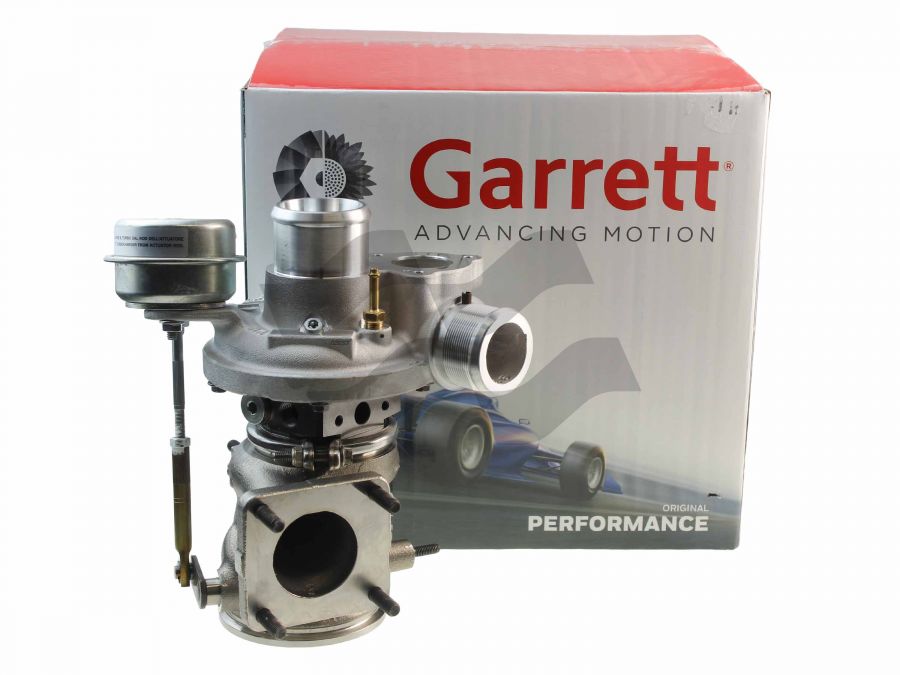

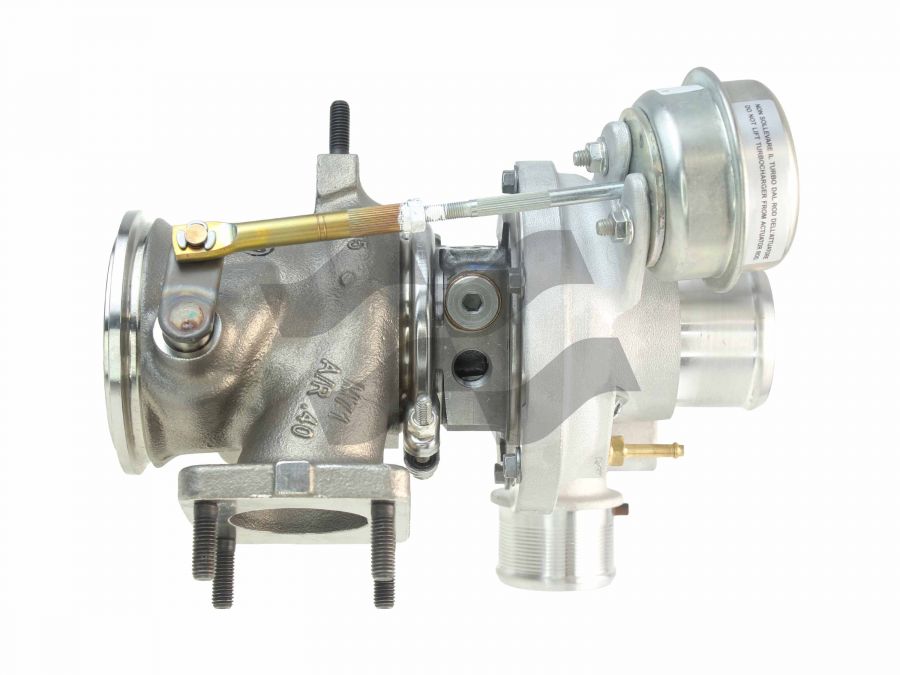

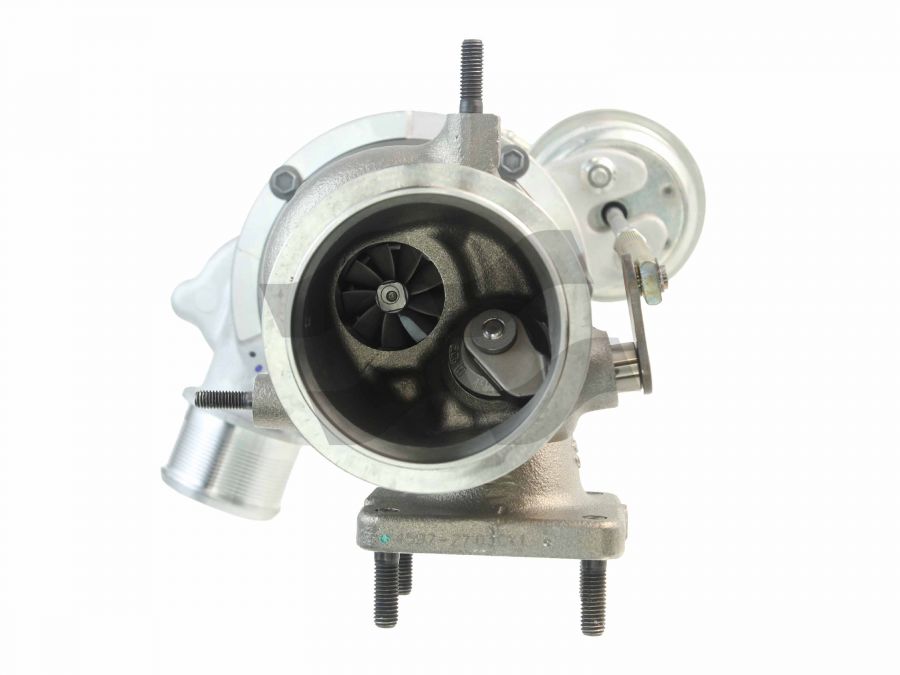

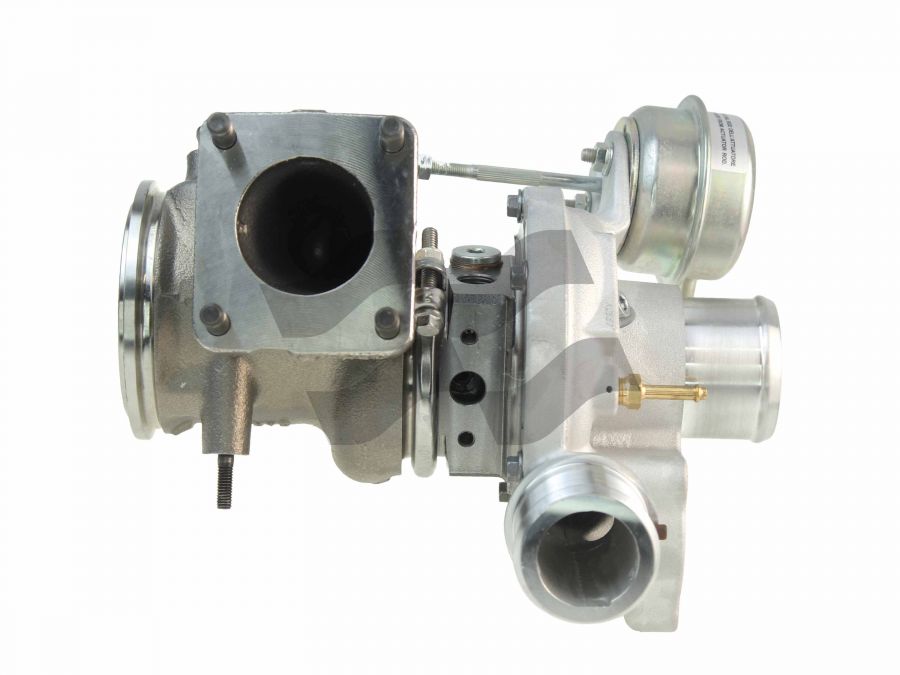

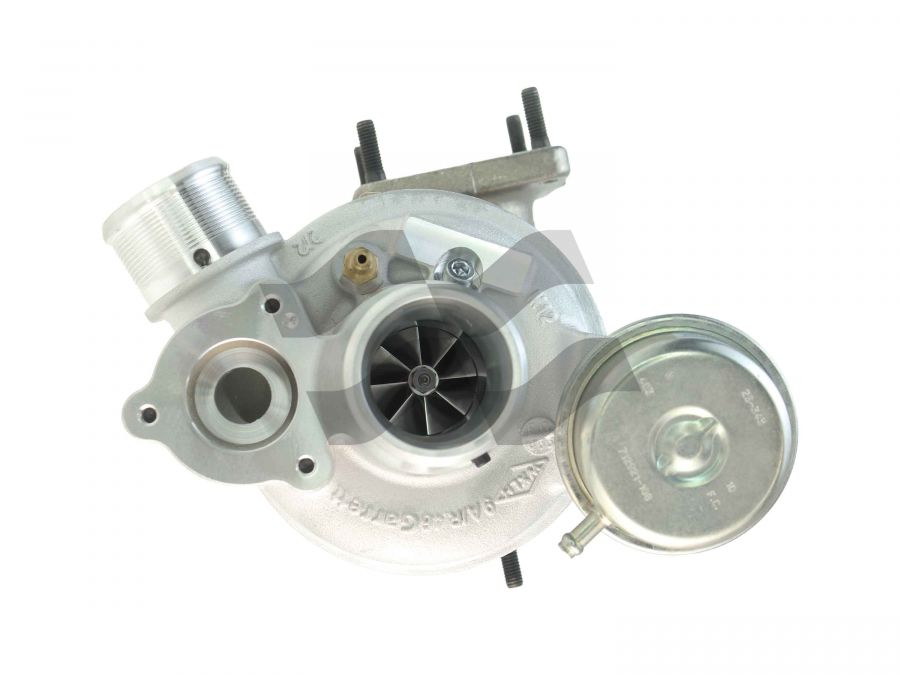

New turbo TUNING MGT1446Z 953223-1 Fiat 500 Abarth 1.4L 2009-2023

Replacement part numbers for turbochargers or the turbocharger models for which the part covered by this offer is intended:

• GT1446Z
• 953223-5001S 953223-0001 953223-1
• 811311-0001, 811311-0002, 812812-0006
• 799502-0001, 799502-0002
• 55248413
• 55278506
• 55238189
• 55231115
• 71798105

These turbochargers were installed by the manufacturer in the following vehicles:

• Fiat 500 Abarth 1.4L (2009–2023)

Application data:

• Engine: 1.4L I4
• Power: 250 hp / 186 kW
• Turbine model: MGT1446Z
• Compressor diameter (inlet): 36.2 mm
• Compressor diameter (outlet): 46 mm
• Turbine diameter (inlet): 39 mm
• Turbine diameter (outlet): 34 mm
• Kit number: 953223-5001S
• Flow: +26%

Warning:

The maximum permissible turbine speed is 240,000 rpm . Use above this value is at your own risk and may result in damage or premature failure.

To prevent overspeed: ? it is recommended to install a speed sensor in the compressor housing (sold separately)

Important:

The power values provided are calculated solely based on the compressor’s maximum flow (so-called choke flow), i.e., the turbine’s potential on the motor (shaft power).

? Actual performance depends on:

• car modifications
• tuning (maps)

Garrett Motion file containing information about the turbine and modifications
