Back plate for 53039700009

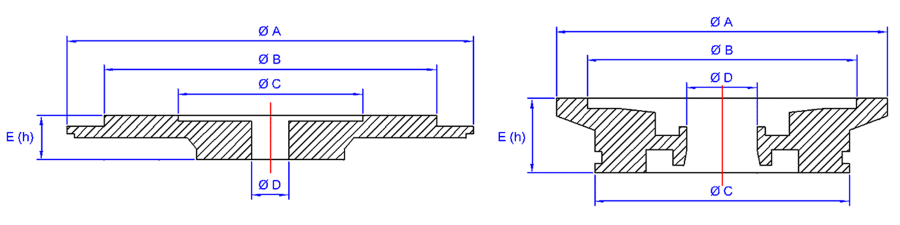

Dimensions of the back plate:

Type (Back plate type): Outside

Trim (Back plate trim): Superback

A (Size A): 112.90

B (Size B): 76.00

C (Size C): 47.20

D (Size D): 10.00

E (Size E): 16.80

Back plate fits to the next turbochargers:

• 53039700009 53039710009 53039880009 53039700018 53039880018 53039900018 53039700023 53039880023 53039700024 53039700050 53039880050 53039700051 53039880051 53039700056 53039700057 53039880057 53039700061 53039880061 53039700062 53039880062 53039700063
• 0375C8 9622526980 9633382180 0375A6 9632427880 9632406680 0375C9 0375F5 9632124680 0375G3 9640168280 13900-67G00 ZY34027010 9640873380 9640355080 0375 G7 9636473280 0375H3 9643350480 ZY34027308

The above turbines were appeared in the following vehicles:

1. Citroen Berlingo I 2.0 HDI 66kW/90PS
2. Citroen C5 I 2.0 HDI 66kW/90PS
3. Citroen Picasso I 2.0 HDI 66kW/90PS
4. Citroen Xantia I 2.0 HDI 66kW/90PS
5. Citroen Xsara I 2.0 HDI 66kW/90PS
6. Peugeot 206 2.0 HDI 66kW/90PS
7. Peugeot 307 2.0 HDI 66kW/90PS
8. Peugeot 406 2.0 HDI 66kW/90PS
9. Peugeot Partner I 2.0 HDI 66kW/90PS
