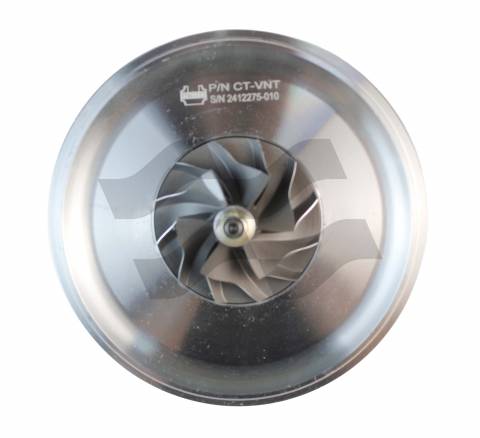

Shaft and wheel for 17201-0L040

Dimensions of the Shaft and wheel:

Blades (Shaft & Wheel blades count): 11

Rotation (Shaft & Wheel rotation direction): Standard

Type (Shaft & Wheel type): Straight

Back (Shaft & Wheel back type): Open

P.R. (Shaft & Wheel piston rings count): Single

A (Size A): 51.80

A1 (Size A1): 51.80

B (Size B): 48.00

C (Size C): 9.60

D (Size D): 8.50

E (Size E): 5.00

H (Size H): 22.00

L (Size L): 100.00

T (Size T): M5.0X0.5LH

Shaft and wheel fits to the next turbochargers:

• 17201-0L040 17201-0L041 17201-0L042 17201-0L090 17201-30010 17201-30011 17201-30060 17201-30062 17201-30100 17201-30101 17201-30110 17201-30150 17201-30180 17201-30181 17201-30210 9B002 TC1VED-S0017B
• TC3VET-S0012B V*BAT120013 17201-30062 17201-30160 17201-30161
