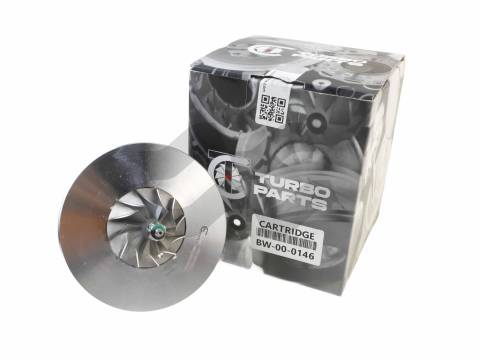

Shaft and wheel for 53149706000

Dimensions of the Shaft and wheel:

Blades (Shaft & Wheel blades count): 12

Rotation (Shaft & Wheel rotation direction): Standard

Type (Shaft & Wheel type): Straight

Back (Shaft & Wheel back type): Open

P.R. (Shaft & Wheel piston rings count): Single

A (Size A): 50.00

A1 (Size A1): 50.00

B (Size B): 37.20

C (Size C): 5.75

D (Size D): 8.48

E (Size E): 5.41

H (Size H): 17.80

L (Size L): 108.00

T (Size T): M5.0X0.8LH

Shaft and wheel fits to the next turbochargers:

• 53149706000 53149886000 53149706001 53149706002 53149706004 53149706005 53149706082 53149706084 53149706085 53149706086 53149706087 53149706088 53149706403 53149706404 53149706406 53149706413 53149706414 53149706415 53149706419 53149706423 53149706424 53149706433 53149706443 53149707009 53149707014 53149707018 53149887018 53149907018 53149707022
• 068145703H 35242001A 35242028F 35242019A 35242027F 068145703L 068145702H 068145704A 068145704B 068145704C 068145704D 9301148280 90325169 90285625 9603684880 9607619280 9614201280 037528 9601515880 037538 9613719780 037540 037541 9613719980 037529 9603623180 028145703E 28145704 074145701A 068145703H
