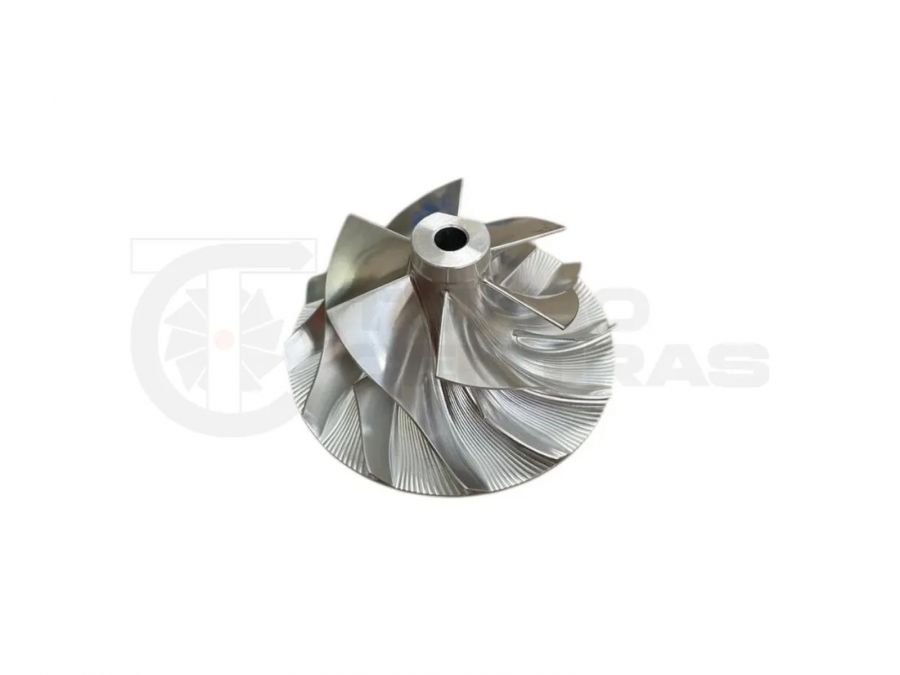

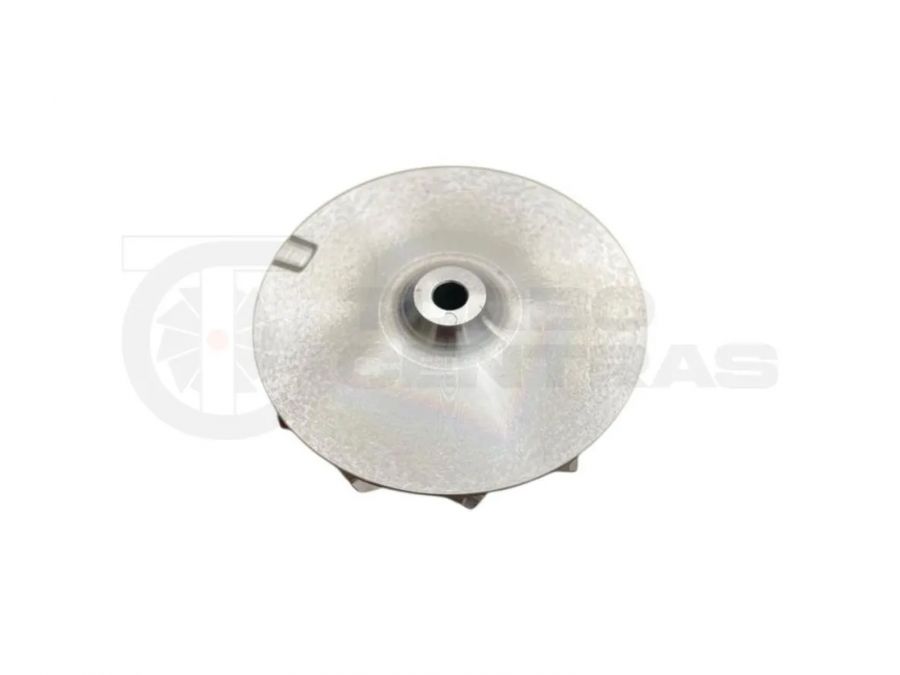

Turbine compression wheel 17459700025 8584199

BW-03-0174 - Alternative Numbers

TCP (TurboCentras part number): BW-03-0174

BW-03-0174 - Part Dimensions and Features

Blades (Number of compressor wheel blades): 6/6

Rotation (Compressor wheel rotation direction): Standard

Type (Compressor wheel production method): Billet

Back (Compressor wheel back design): Super

A (Size A): 53.00

A1 (Size A1): 54.18

B (Size B): 38.20

C (Size C): 3.87

C1 (Size C1): 3.30

D (Size D): 29.80

E (Size E): 4.61

BW-03-0174 - Used in turbines

17459980040, 17459710040, 11658587540, 17459980039, 17459710039, 11658584200, 17459710026, 1165858754009, 17459700044, 17459700042, 17459700041, 17459700039, 17459700038, 41319700005, 17459700037, 41319700003, 17459700036, 17459700034, 11658587539, 17459700033, 17459700028, 17459700027, 17459700026, 17459700025, 17459700023, 1165858753908, 17459700022, 17459700021, 17459700020, 17459700018, 17459700015, 17459700011, 17459700009, 17459700007, 17459700006, 17459700002, 1745 970 0002, 1745-970-0002, 1745 970 0006, 1745 970 0007, 1745 970 0009, 1745-970-0010, 1745 970 0011, 1745-970-0013, 1745 970 0015, 1745-970-0017, 1165 8587539, 1745 970 0018, 8587539, 1745-970-0019, 1745 970 0020, 1745 970 0021, 8584199, 1745 970 0022, 1165 8587539 08, 1745 970 0023, 1745 970 0025, 1745 970 0026, 1745 970 0027, 1745 970 0028, 1745 970 0033, 1745 970 0034, 1745 970 0036, 9885976, 1745 970 0037, 1165988597405, 1165988597607, 17459700037/41319700003, 4131 970 0003, 1165988597406, 17459700037/41319700005, 4131 970 0005, 1745 970 0038, 1745 970 0039, 1745 970 0041, 1745 970 0042, 1745 970 0044, 1745-971-0010, 1745-971-0022, 1165 8587540 09, 1745 971 0026, 8587540, 1165 8584200, 1745 971 0039, 1745 998 0039, 8584200, 1165 8587540, 1745 971 0040, 1745 998 0040

Data updated: 2025-12-12 15:09:46
