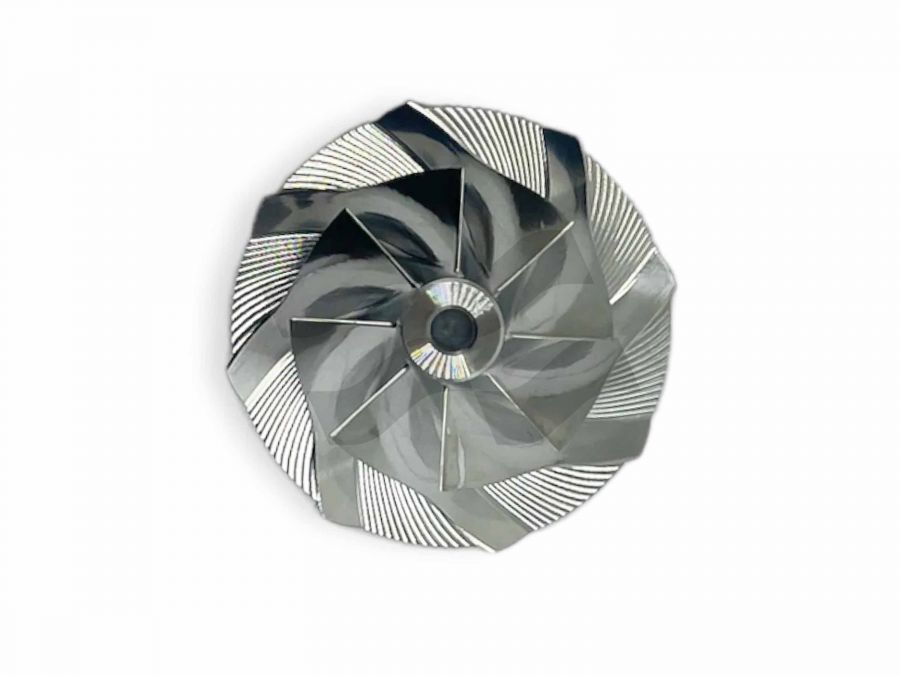

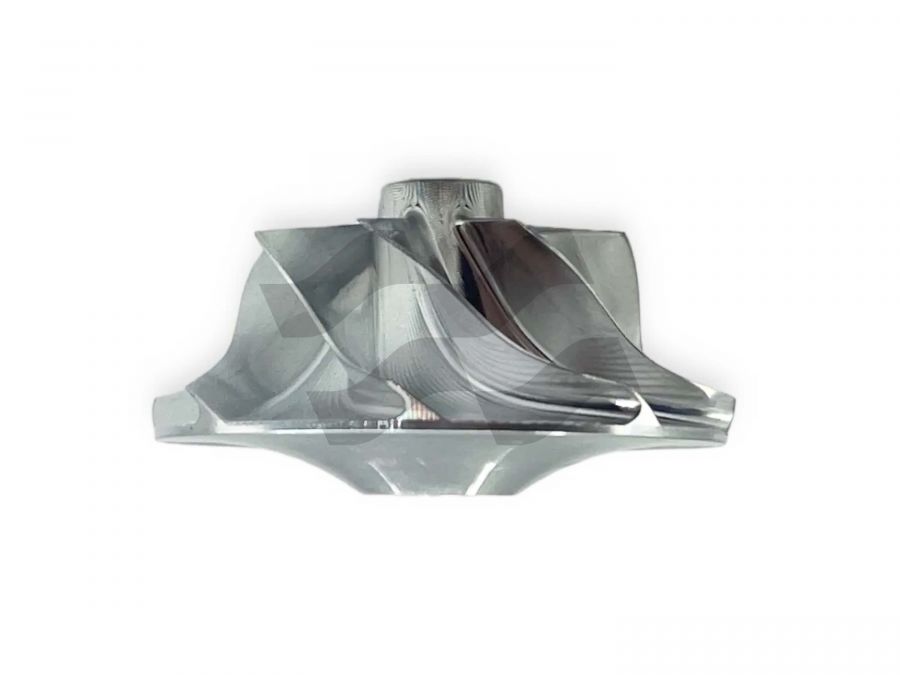

Compression cycle from GA-03-0152 to 830324-0001

GA-03-0152 - Part Dimensions and Specifications

Blades (Number of compressor wheel blades): 8

Rotation (Compressor wheel rotation direction): Standard

Type (Compressor wheel manufacturing method): Billet

Back (Compressor wheel back design): Super

A (Size A): 44.00

A1 (Size A1): 45.60

B (Size B): 30.50

C (Size C): 3.64

C1 (Size C1): 4.00

D (Size D): 24.20

E (Size E): 4.08

---

Compression Ring GA-03-0152 - Compatible Turbochargers

TURBO MAKER	TURBO MODEL	TURBO PART NUMBERS	TURBO OE NUMBERS
Garrett	GTD1244VZ	819872-0001, 819872-5001S	9804119380
Garrett	GTD1244VZ	819872-0002, 819872-5002S	9848017480
Garrett	GTD1244VZK	830324-0001	--
Garrett	GTD1244VZM	830324-0002, 830324-5002S	04L253016S, 04L253016SV400
Garrett	GTD1244VZK	830324-0003	04L253016SX
Garrett	GTD1244VZM	830324-0004, 830324-5004S	04L253020G
Garrett	GT1244SZ	836264-0001, 836264-5001S	31380130, 36010069
Garrett	GTD12V	847234-0001	--
Garrett	GTD12V	847234-0002	--
Garrett	GTD1244VZ	873732-0001, 873732-5001S	04L253014H
EE Turbo	GTD1244VKZ	819872-0001, 819872-0002, 819872-5001S, 819872-5002S, Turbo-G772	9804119380, 9848017480

---

Used in turbochargers:

819872-0001, 819872-5001S, 9804119380, 819872-0002, 819872-5002S, 9848017480, 830324-0001, 04L253016S, 04L253016SV400, 830324-0002, 830324-5002S, 04L253016SX, 830324-0003, 04L253020G, 830324-0004, 830324-5004S, 31380130, 36010069, 836264-0001, 836264-5001S, 847234-0001, 847234-0002, 04L253014H, 873732-0001, 873732-5001S, Turbo-G772

---
