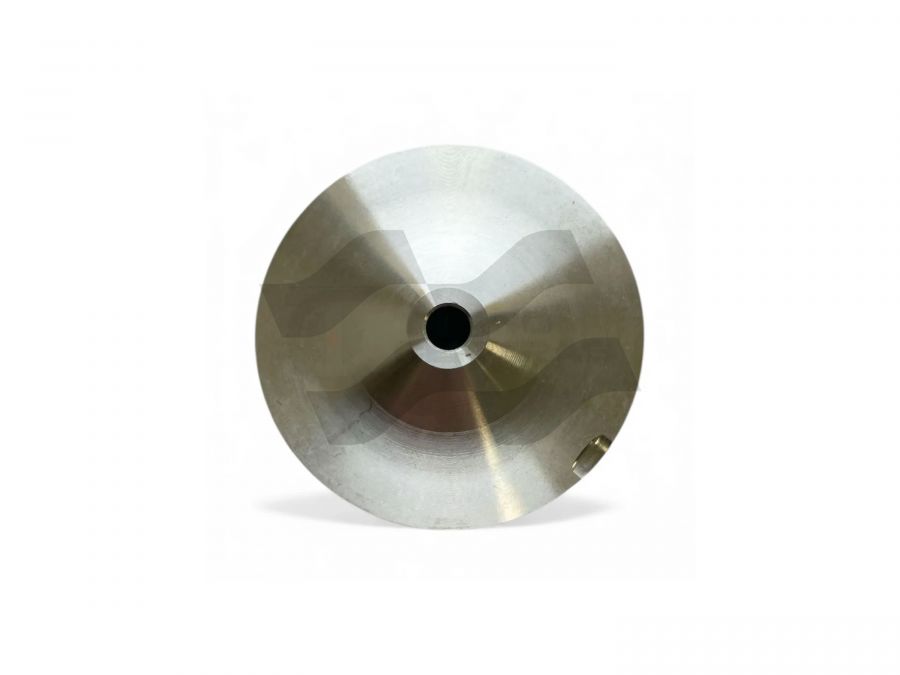

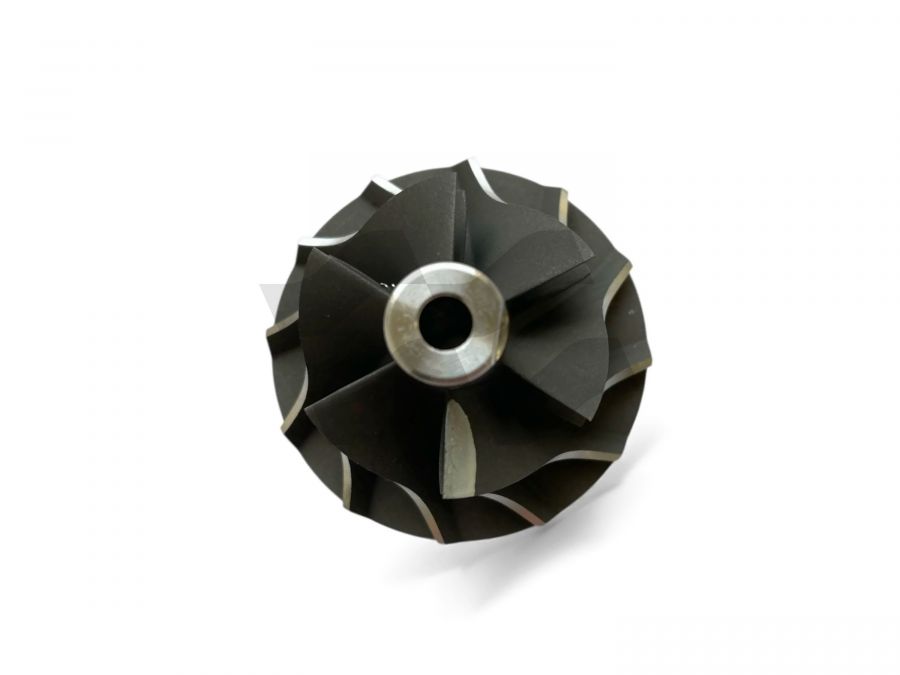

Compression wheel for VIFC, VIHO, VIHX

IH-03-0052 - Part Dimensions and Features

Blades (Number of compressor wheel blades): 6/6

Rotation (Compressor wheel rotation direction): Standard

Type (Compressor wheel manufacturing method): Cast

Back (Compressor wheel back design): Super

A (Size A): 46.50

A1 (Size A1): 46.50

B (Size B): 33.40

C (Size C): 3.82

C1 (Size C1): 3.75

D (Size D): 29.60

E (Size E): 5.10

---

Compression Ring IH-03-0052 - Compatible Turbochargers

PRODUCENT TURBOSPRĘŻARKI	MODEL TURBOSPRĘŻARKI	TURBO PART NUMBERS	TURBO OE NUMBERS
IHI	RHV4	VAD20013, VIFC	897376-2731, 897376-2734, 897376-2735, 898102-3711, 898102-3712
IHI	RHV4	VAD20013, VIFC, VIFC-R	897376-2731, 897376-2734, 897376-2735, 898102-3711, 898102-3712
IHI	RHV4	V41VAD-S0074B, V41VAD-S0074G, VIHO	8981796831
IHI	RHV4	V41VAD-S0089B, V41VAD-S0089G, VIHX	8981951431

---

IH-03-0052 - Used in turbines

897376-2731, 897376-2734, 897376-2735, 898102-3711, 898102-3712, VAD20013, VIFC, VIFC-R, 8981796831, V41VAD-S0074B, V41VAD-S0074G, VIHO, 8981951431, V41VAD-S0089B, V41VAD-S0089G, VIHX

---

Data updated: 2025-09-17 12:59:55
