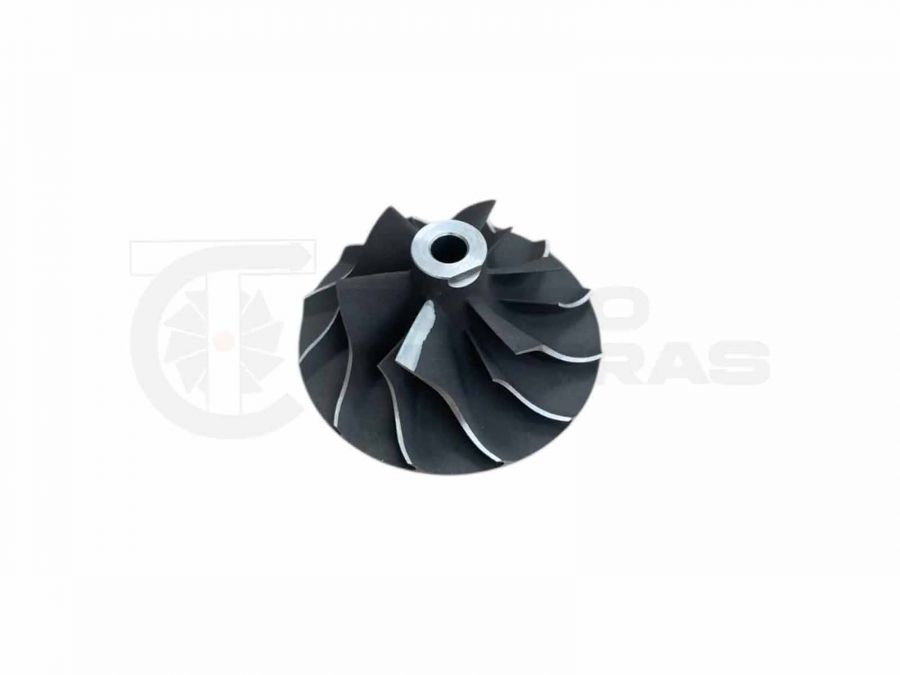

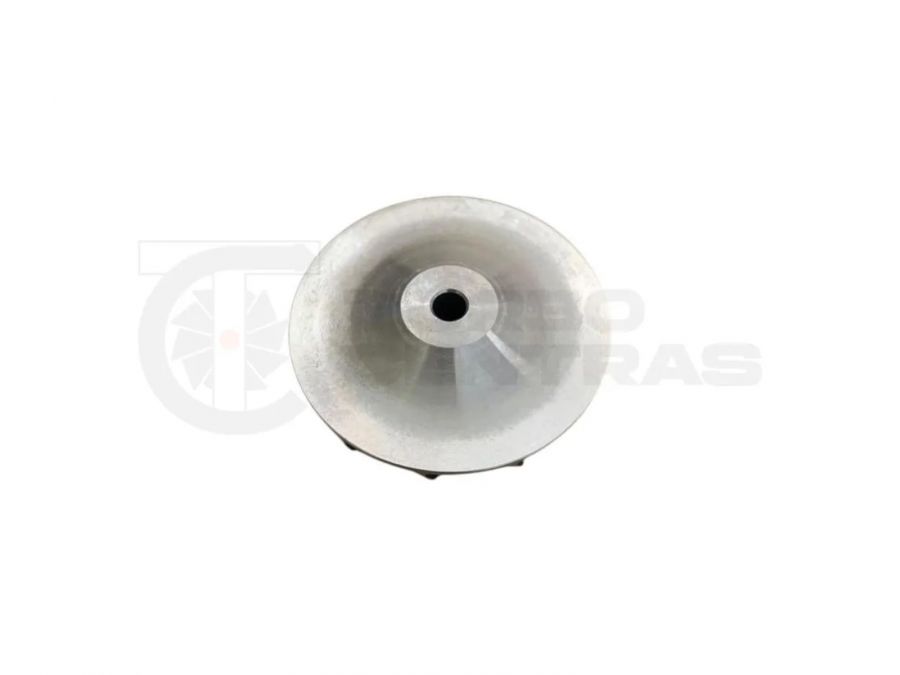

Turbine compression wheel 793829-0001 AH4Q6K682FB

GA-03-0161 - Part Dimensions and Specifications

Blades (Number of compressor wheel blades): 6/6

Rotation (Compressor wheel rotation direction): Standard

Type (Compressor wheel manufacturing method): Cast

Back (Compressor wheel back design): Super

A (Size A): 49.00

A1 (Size A1): 49.00

B (Size B): 33.00

C (Size C): 3.15

C1 (Size C1): 4.00

D (Size D): 26.40

E (Size E): 5.08

GA-03-0161 - Used in turbines

793829-0001, 793829-5001S, AH4Q-6K682-FB, AH4Q6K682FB, 793829-0002, LR022790, 793829-0003, AH4Q-6K682-FD, LR049589, 793829-0006, 793829-5006S, 793829-9006S, AH4Q-6K682-FE, AH4Q6K682FE

Data updated: 2025-07-15 10:10:38
