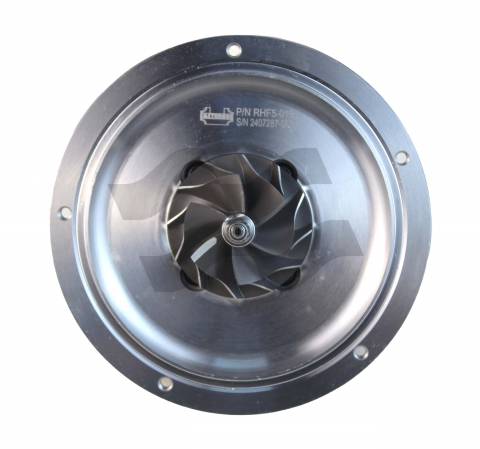

Compressor wheel 06J145701N
Dimensions
- A Size A
- 52.50 mm
- A1 Size A1
- 52.50 mm
- B Size B
- 39.40 mm
- C Size C
- 5.40 mm
- C1 Size C1
- 1.60 mm
- D Size D
- 26.60 mm
- E Size E
- 5.10 mm
About product
!!!Fits only IHI turbochargers.
Please select parts based solely on the turbine part number (IHI number); do not use the OEM number as a guide!!!!
IH-03-0028 - Compression wheel
Marka: TurboCentras
TurboCentras Reference: IH-03-0028
IH-03-0028 - Alternative numbers
TCP (TurboCentras part number): IH-03-0028
TCO (TurboCentras old part number): RHF5-02
IH-03-0028 - Compatibility table
| Compressor wheel IH-03-0028 - Compatible turbochargers | ||||
|---|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
| IHI | RHF5 | KHF5-2B | KHF5-2B, RHF5-2B | 28200-4X400, 28201-4X700, 28201-4X701, 28201-4X710 |
| IHI | RHF5-64006P15NHBRL401CEZ | VIED | F51CAD-S0084B, F51CAD-S0093B, VC430084, VIED | 8973659480, 8973659481, 8973659482 |
| IHI | RHF5-64006P15NHBRL401CEZ | VIEK | F51CAD-S0093B, VB430093, VIEK | 8973544234 |
| IHI | RHF5-6400N | VR14 | VR14 | -- |
| IHI | RHF5-64006P15NHBRL401CEZ | VR15 | KHF5-1A, VA430036, VB430036, VR12A, VR15 | 28200-4X300, OK059A-13700, OK551-13700C |
| IHI | RHF5 | VR18 | KHF5-4A, VR18 | 28200-4X610, 28201-4X610 |
IH-03-0028 - Part Dimensions and Features
Blades (Number of compressor wheel blades): 6/6
Rotation (Compressor wheel rotation direction): Standard
Type (Compressor wheel manufacturing method): Cast
Back (Compressor wheel back design): Super
A (Size A): 52.50
A1 (Size A1): 52.50
B (Size B): 39.40
C (Size C): 5.40
C1 (Size C1): 1.60
D (Size D): 26.60
E (Size E): 5.10
IH-03-0028, RHF5-02
06J145701F, 9VA02, 06J145701N, 9VA13, 06J145701Q, 9VA02, 06J145701T, 9VA13, 06J145702B, 9VA02, 06J145702K, 9VA13, 06J145702L, 9VA02, 06J145702T, 06J145703C, 06J145703N, 06J145704D, 06J145710L, 06J145713A, 9VA15, 06J145713C, 06J145713F, 9VA15, 06J145713K, 9VA13, 06J145713L, 9VA02, 06J145713T, 9VA13, 06J145722B, 9VA13, 06J145713A, 06J145713D, 06J145713F, 9VA15, F51CAY-SR038B, F50FF001A, FU10000698, 28200-4X400, 28201-4X700, 28201-4X701, 28201-4X710, KHF5-2B, RHF5-2B, P700000204, SF500027, 8973109482, 8973109483, F51CAD-S0077B, F51CAD-S0077G, V*430077, VA430077, VB430077, VC430077, VIDW, 8973659480, 8973659481, 8973659482, F51CAD-S0084B, F51CAD-S0093B, VC430084, VIED, 8973544234, F51CAD-S0093B, VB430093, VIEK, VR14, 28200-4X300, KHF5-1A, OK059A-13700, OK551-13700C, VA430036, VB430036, VR12A, VR15, 28200-4X610, 28201-4X610, KHF5-4A, VR18
Date updated: 2025-02-07 18:00:42
Specifications
Manufacturer
SKU
IH-03-0028
Condition
New
Main number
CW-0517, IH-03-0028, RHF5-02
OEM number
VR15, VR14, VIEK, VIED, KHF5-2B, VR18
Warranty
12 months of manufacturer warranty
Delivery and Payment
Components
3 parts
