Compressor wheel 452164-0001

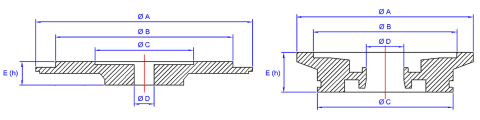

Dimensions
- A Size A
- 94.10 mm
- A1 Size A1
- 94.00 mm
- B Size B
- 62.40 mm
- C Size C
- 7.30 mm
- C1 Size C1
- 9.50 mm
- D Size D
- 58.90 mm
- E Size E
- 8.25 mm
About product
GA-03-0115 - Compressor wheel
Brand: TurboCentras
TurboCentras Reference: GA-03-0115
GA-03-0115 - Alternative numbers
GHP (Garrett original part number): 451193-0005
TCP (TurboCentras part number): GA-03-0115
TCO (TurboCentras old part number): GT45-02
GA-03-0115 - Compatibility table
| Compressor wheel GA-03-0115 - Compatible turbochargers | ||||
|---|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
| Holset | HX55 | 3537840 | 3537840, 3537913, 3591949, 452164-0001 | 1677725, 425720, 8112921, 8148873 |
| Garrett | GT4594 | 452164-0002 | 452164-0002 | -- |
| Garrett | GT4594 | 452164-0003 | 452164-0003, 452164-5003S | 425777 |
| Garrett | GT4594 | 452164-0004 | 452164-0004, 452164-5004S | -- |
| Garrett | GT4594 | 452164-0005 | 452164-0005 | -- |
| Garrett | GT4594N | 452164-0006 | 452164-0006, 452164-5006S | 3964870 |
| Garrett | GT4594N | 452164-0007 | 452164-0007, 452164-5007S | 3964880 |
| Garrett | GT4594 | 452164-0008 | 452164-0008 | -- |
| Garrett | GT4594 | 452164-0010 | 452164-0010, 452164-5010S | 11030482 |
| Garrett | GT4594 | 452164-0011 | 452164-0011, 452164-5011S | 11030483 |
| Garrett | GT4594 | 452164-0012 | 452164-0012, 452164-5012S | 11127624 |
| Garrett | GT4594 | 452164-0013 | 452164-0013, 452164-5013S | 11128740 |
| Garrett | GT4294W | 700313-0001 | 700313-0001 | 141-2509 |
| Garrett | GT327 | 709197-0001 | 709197-0001 | -- |
| Garrett | GT4594L | 709197-0002 | 709197-0002 | -- |
| Garrett | GT327 | 709197-0003 | 709197-0003 | -- |
| Garrett | GT4594L | 709197-0004 | 709197-0004 | 20540916 |
| Garrett | GT4594 | 712922-0001 | 712922-0001, 712922-5001S | 3169592 |
| Garrett | GT4594 | 712922-0003 | 712922-0003, 712922-5003S | 3169594 |
| Garrett | GT4594 | 712922-0005 | 712922-0005, 712922-5005S | 3169659 |
| Garrett | GT4594 | 712922-0006 | 712922-0006, 712922-5006S | 20381330 |
| Garrett | GTA4594BN | 712922-0011 | 712922-0011, 712922-5011S | 20791333 |
| Garrett | GTA4594BN | 712922-0012 | 712922-0012, 712922-5012S | 20791329 |
| Garrett | GT4294W | 723115-0001 | 723115-0001 | 200-2063 |
GA-03-0115 - Part Properties
Blades (Compressor wheel blades count): 6/6
Rotation (Compressor wheel rotation direction): Standard
Type (Compressor wheel production method type): Cast
Back (Compressor wheel back design): Super
A (Size A): 94.10
A1 (Size A1): 94.00
B (Size B): 62.40
C (Size C): 7.30
C1 (Size C1): 9.50
D (Size D): 58.90
E (Size E): 8.25
451193-0005, GA-03-0115, GT45-02
1677725, 3537840, 3537913, 3591949, 425720, 452164-0001, 8112921, 8148873, 452164-0002, 425777, 452164-0003, 452164-5003S, 452164-0004, 452164-5004S, 452164-0005, 3964870, 452164-0006, 452164-5006S, 3964880, 452164-0007, 452164-5007S, 452164-0008, 11030482, 452164-0010, 452164-5010S, 11030483, 452164-0011, 452164-5011S, 11127624, 452164-0012, 452164-5012S, 11128740, 452164-0013, 452164-5013S, 141-2509, 700313-0001, 709197-0001, 709197-0002, 709197-0003, 20540916, 709197-0004, 3169592, 712922-0001, 712922-5001S, 3169594, 712922-0003, 712922-5003S, 3169659, 712922-0005, 712922-5005S, 20381330, 712922-0006, 712922-5006S, 20791333, 712922-0011, 712922-5011S, 20791329, 712922-0012, 712922-5012S, 200-2063, 723115-0001
Specifications
Manufacturer:
SKU:
GA-03-0115
Serial number:
GA-03-0115
Main number:
GT45-02, GA-03-0115, 451193-0005, CW-0425
OEM number:
3537840, 452164-0002, 452164-0003, 452164-0004, 452164-0005, 709197-0001, 709197-0002, 709197-0003, 712922-0001, 712922-0006, 712922-0011, 712922-0003, 712922-0005, 712922-0012, 452164-0006, 452164-0007, 452164-0010, 452164-0011, 452164-0012, 452164-0013, 700313-0001, 723115-0001, 452164-0008, 709197-0004
