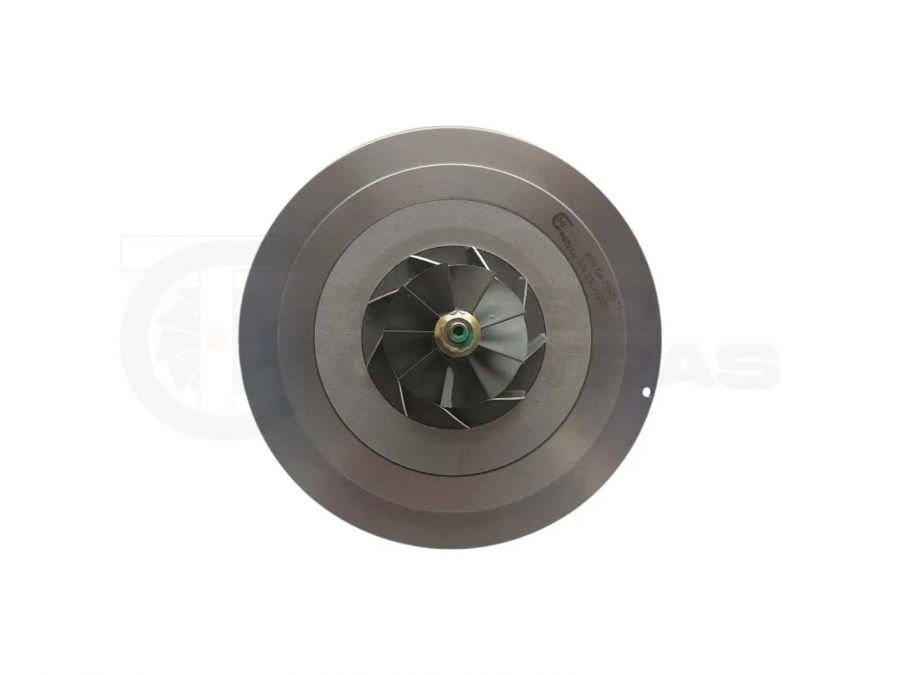

Compressor wheel 729125-0007
Dimensions
- A Size A
- 52.00 mm
- A1 Size A1
- 52.00 mm
- B Size B
- 38.60 mm
- C Size C
- 4.50 mm
- C1 Size C1
- 4.00 mm
- D Size D
- 27.00 mm
- E Size E
- 5.08 mm
About product
GA-03-0060 - Compressor wheel
Brand: TurboCentras
TurboCentras Reference: GA-03-0060
GA-03-0060 - Alternative numbers
GHP (Garrett original part number): 717697-0004
TCP (TurboCentras part number): GA-03-0060
TCO (TurboCentras old part number): GT17-05
GA-03-0060 - Compatibility table
| Compressor wheel GA-03-0060 - Compatible turbochargers | ||||
|---|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
| Garrett | GTA1752LV | 729125-0007 | 729125-0007, 729125-5007S | 18900RBDE010M2 |
| Garrett | GTA1752LV | 729125-0008 | 729125-0008, 729125-5008S | 18900RBDE021M2 |
| Garrett | GTA1752LV | 729125-0009 | 729125-0009, 729125-5009S | 18900RBDE110M2 |
| Garrett | GTA1752LV | 729125-0012 | 729125-0012, 729125-5012S | 18900RBDE022M2 |
| Garrett | GTA1752LV | 729125-0013 | 729125-0013, 729125-5013S | 18900RBD3050 |
| Garrett | GTA1752LV | 753707-0009 | 753707-0009 | -- |
| Garrett | GT1752V | 753708-0005 | 753708-0005 | 18900-RSR-E01, 18900RSRE01 |
| Garrett | GTA1752LV | 759394-0002 | 759394-0002 | -- |
| Garrett | GTA1752LV | 761650-0001 | 761650-0001 | 18900-RBD-E03, 18900RBDE03 |
| Garrett | GTA1752LV | 769040-0001 | 769040-0001 | 504203413 |
| Garrett | GTA1752LV | 802013-0001 | 802013-0001, 802013-5001S | -- |
| Garrett | GT17 | 802014-0001 | 802014-0001 | 18900-RMA-E01, 18900RMAE01 |
GA-03-0060 - Part Properties
Blades (Compressor wheel blades count): 5/5
Rotation (Compressor wheel rotation direction): Standard
Type (Compressor wheel production method type): Cast
Back (Compressor wheel back design): Deep Super
A (Size A): 52.00
A1 (Size A1): 52.00
B (Size B): 38.60
C (Size C): 4.50
C1 (Size C1): 4.00
D (Size D): 27.00
E (Size E): 5.08
717697-0004, GA-03-0060, GT17-05
18900RBDE010M2, 729125-0007, 729125-5007S, 18900RBDE021M2, 729125-0008, 729125-5008S, 18900RBDE110M2, 729125-0009, 729125-5009S, 18900RBDE022M2, 729125-0012, 729125-5012S, 18900RBD3050, 729125-0013, 729125-5013S, 753707-0009, 18900-RSR-E01, 18900RSRE01, 753708-0005, 759394-0002, 18900-RBD-E03, 18900RBDE03, 761650-0001, 504203413, 769040-0001, 802013-0001, 802013-5001S, 18900-RMA-E01, 18900RMAE01, 802014-0001
Specifications
Manufacturer:
SKU:
GA-03-0060
Serial number:
GA-03-0060
Main number:
GT17-05, GA-03-0060, 717697-0004, CW-0441
OEM number:
729125-0008, 753707-0009, 753708-0005, 759394-0002, 761650-0001, 729125-0007, 802014-0001, 802013-0001, 729125-0009, 729125-0013, 729125-0012, 769040-0001
