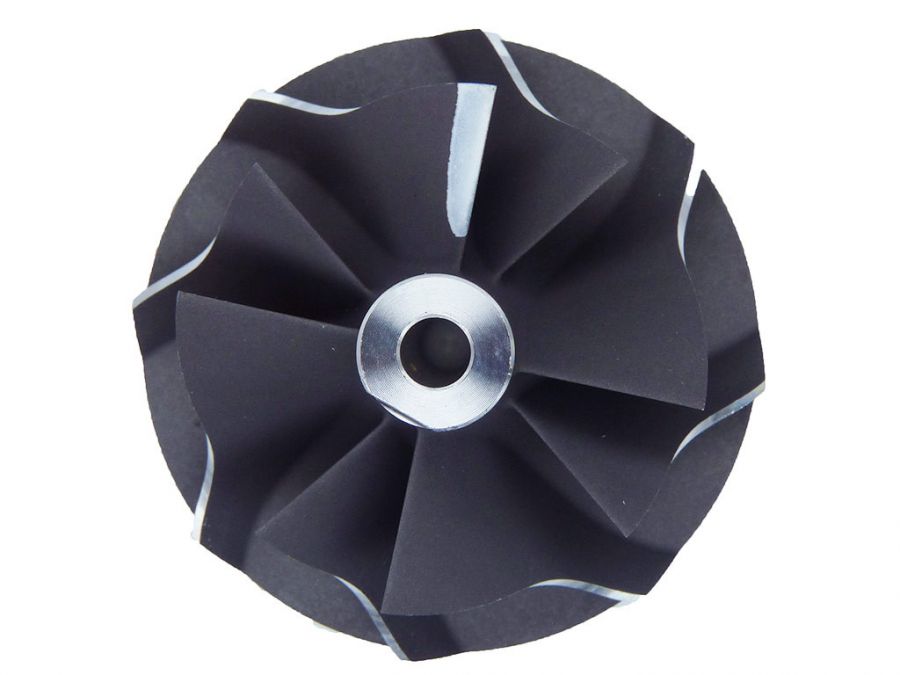

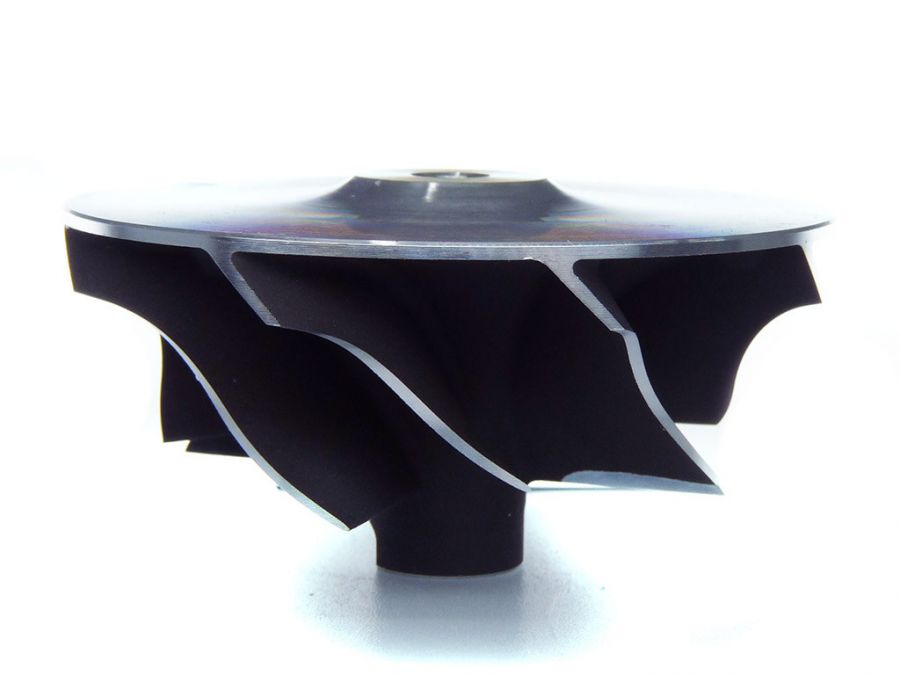

Compressor wheel 53049500001

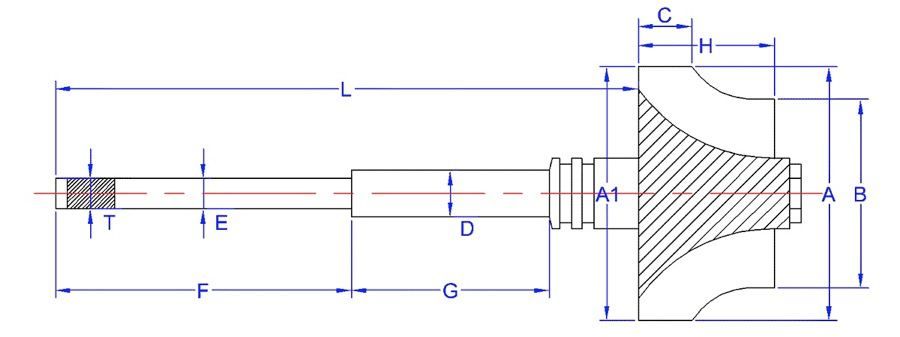

Dimensions
- A Size A
- 50.00 mm
- A1 Size A1
- 50.00 mm
- B Size B
- 37.60 mm
- C Size C
- 5.00 mm
- C1 Size C1
- 1.80 mm
- D Size D
- 25.70 mm
- E Size E
- 4.61 mm
About product
BW-03-0092 - Compressor wheel
Brand: TurboCentras
TurboCentras Reference: BW-03-0092
BW-03-0092 - Alternative numbers
BWP (BorgWarner original part number): 5304 123 2004
BWP (BorgWarner original part number): 5304 123 2009
BWP (BorgWarner original part number): 5304 123 2010
TCP (TurboCentras part number): BW-03-0092
TCO (TurboCentras old part number): K03/04-22
BW-03-0092 - Compatibility table
| Compressor wheel BW-03-0092 - Compatible turbochargers | ||||
|---|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
| BorgWarner | K04-2075EAC5.82GCAXK | 53049500001 | 5304 950 0001, 5304 950 0001 | 06A145705HP |
| BorgWarner | K04 | 53049700015 | 5304 970 0015 | -- |
| BorgWarner | K04-2075EYD5.82GCAXH | 53049887501 | 5304 988 7501, 5304 988 7501 | -- |
| BorgWarner | K06-2075EXC5.82GCCBD | 53069700002 | 5306 970 0002, 5306 988 0002 | C5240030A |
BW-03-0092 - Part Properties
Blades (Compressor wheel blades count): 4/4
Rotation (Compressor wheel rotation direction): Standard
Type (Compressor wheel production method type): Cast
Back (Compressor wheel back design): Super
A (Size A): 50.00
A1 (Size A1): 50.00
B (Size B): 37.60
C (Size C): 5.00
C1 (Size C1): 1.80
D (Size D): 25.70
E (Size E): 4.61
53041232010, 53041232009, 53041232004, 5304 123 2004, 5304 123 2009, 5304 123 2010, BW-03-0092, K03/04-22
53069880002, 53069700002, 53049887501, 53049887501, 53049700015, 53049500001, 53049500001, 06A145705HP, 5304 950 0001, 5304 950 0001, 5304 970 0015, 5304 988 7501, 5304 988 7501, 5306 970 0002, 5306 988 0002, C5240030A
Specifications
Manufacturer:
SKU:
BW-03-0092
Serial number:
BW-03-0092
Main number:
K03/04-22, BW-03-0092, 5304 123 2004, 5304 123 2009, 5304 123 2010, CW-1017
OEM number:
53049700015, 53069700002, 53049500001, 53049887501
