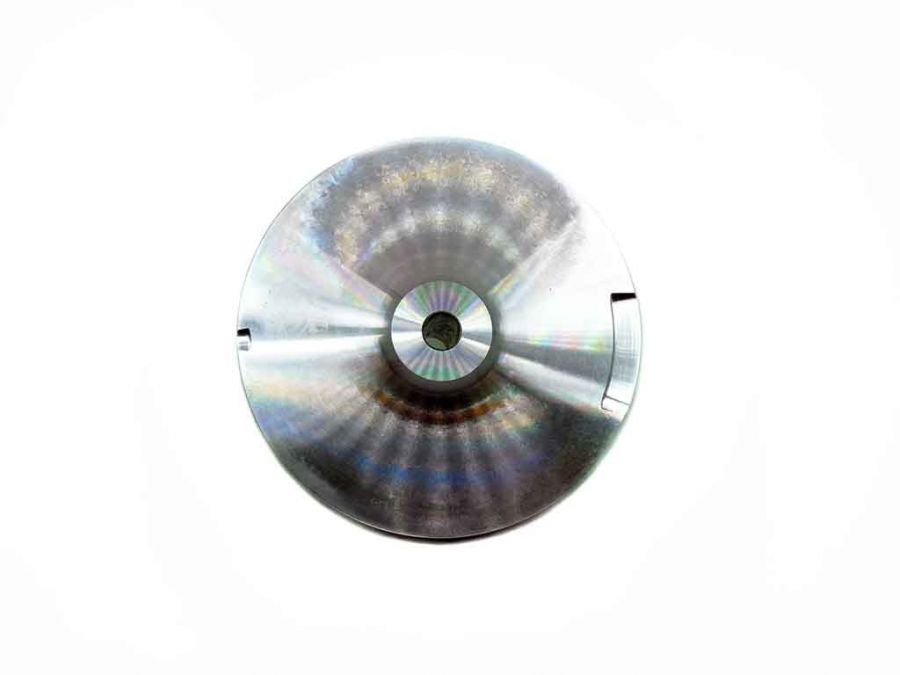

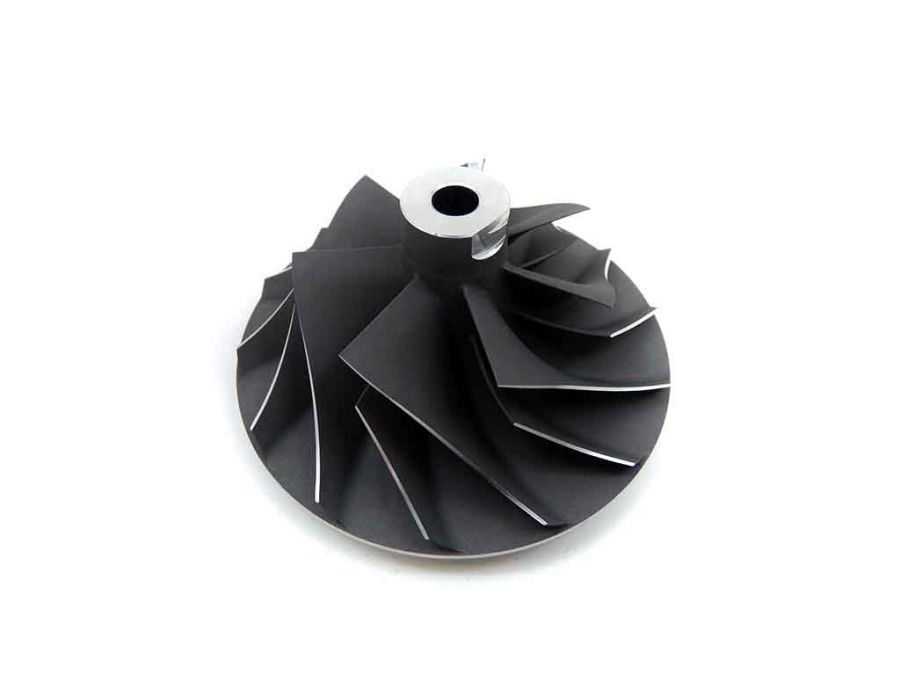

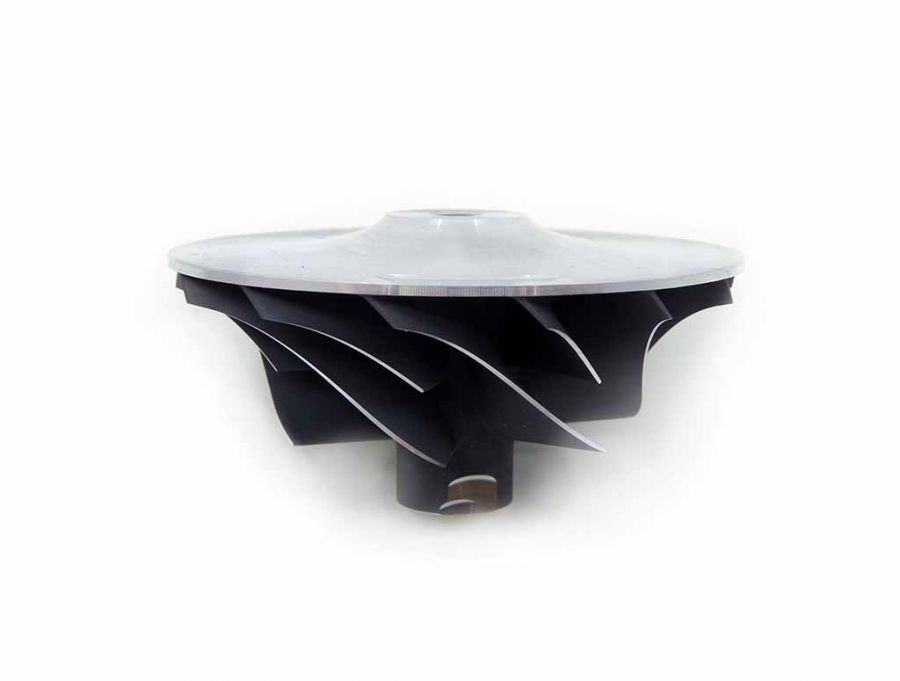

Compressor wheel 10701970003
Dimensions
- A Size A
- 78.60 mm
- A1 Size A1
- 78.60 mm
- B Size B
- 51.75 mm
- C Size C
- 5.20 mm
- C1 Size C1
- 5.00 mm
- D Size D
- 40.40 mm
- E Size E
- 7.00 mm
About product
BW-03-0032 - Compressor wheel
Brand: TurboCentras
TurboCentras Reference: BW-03-0032
BW-03-0032 - Alternative numbers
BWP (BorgWarner original part number): 1077 123 2003
TCO (TurboCentras old part number): B2-01
TCP (TurboCentras part number): BW-03-0032
BW-03-0032 - Compatibility table
| Compressor wheel BW-03-0032 - Compatible turbochargers | ||||
|---|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
| BorgWarner | B2-3067NRAKB0.70DK1 | 10701970003 | 1070 197 0003 | 2674A266 |
| BorgWarner | B2-3067NRAKB0.70DK1 | 10709700002 | 1070 970 0002 | 2674A237 |
| BorgWarner | B2-3067NRAKB0.70DK1 | 10709880002 | 1070 197 0002, 1070 988 0002 | 2674A256, 315-9810 |
| BorgWarner | B2-3067NRAKB0.70DK1 | 10709880005 | 1070 197 0005, 1070 988 0005 | 2674A271 |
| BorgWarner | B2-3067NRAKB0.70DK1 | 10709880012 | 1070 970 0002, 1070 988 0012 | 2674A237 |
| BorgWarner | B2G-3067NRAKB0.66DK1 | 12709700067 | 1270 970 0067, 1270 988 0067 | 5361118010 |
BW-03-0032 - Part Properties
Blades (Compressor wheel blades count): 7/7
Rotation (Compressor wheel rotation direction): Standard
Type (Compressor wheel production method type): Cast
Back (Compressor wheel back design): Super
A (Size A): 78.60
A1 (Size A1): 78.60
B (Size B): 51.75
C (Size C): 5.20
C1 (Size C1): 5.00
D (Size D): 40.40
E (Size E): 7.00
10771232003, 1077 123 2003, B2-01, BW-03-0032
12709880067, 12709700067, 10709880012, 10709700002, 10709880005, 10701970005, 10709880002, 10701970002, 10709700002, 10701970003, 1070 197 0003, 2674A266, 1070 970 0002, 2674A237, 1070 197 0002, 1070 988 0002, 2674A256, 315-9810, 1070 197 0005, 1070 988 0005, 2674A271, 1070 970 0002, 1070 988 0012, 2674A237, 1270 970 0067, 1270 988 0067, 5361118010
Specifications
Manufacturer:
SKU:
BW-03-0032
Serial number:
BW-03-0032
Main number:
B2-01, BW-03-0032, 1077 123 2003, CW-0817
OEM number:
10709700002, 12709700067, 10709880002, 10701970003, 10709880005, 10709880012
