Compressor wheel 12709700032
Compressor wheel 12709700032
- Manufacturer:
TurboCentras
- Serial number:
BW-03-0031
- Main number:
B2-00, BW-03-0031, 1283 123 2001, CW-0816
- OEM number:
10009700009, 10009700058, 10009700059, 10009700077, 10009700078, 10009700083, 12709700032, 12709700070, 12709700100, 12709700171, 12739700001, 12739700009, 12739700010, 12739700018, 57749702200, 10009401085
About product
BW-03-0031 - Compressor wheel
Brand: TurboCentras
TurboCentras Reference: BW-03-0031
BW-03-0031 - Alternative numbers
BWP (BorgWarner original part number): 1283 123 2001
TCO (TurboCentras old part number): B2-00
TCP (TurboCentras part number): BW-03-0031
BW-03-0031 - Compatibility table
| Compressor wheel BW-03-0031 - Compatible turbochargers | ||||
|---|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
| BorgWarner | B2 | 10009401085 | 1000 940 1085 | 082V09100-7941 |
| BorgWarner | R2S B1UG + B2US | 10009700009 | 1000 970 0009 | 51.09100-7866 |
| BorgWarner | R2S B1UG + B2US | 10009700058 | 1000 970 0058 | 51.09100-7911 |
| BorgWarner | R2S B1UG + B2US | 10009700059 | 1000 970 0059 | 51.09100-7981 |
| BorgWarner | R2S B1UG + B2US | 10009700077 | 1000 970 0077 | 51.09101-7012 |
| BorgWarner | R2S B1UG + B2US | 10009700078 | 1000 970 0078 | 51.09101-7013 |
| BorgWarner | R2S B1UG + B2US | 10009700083 | 1000 970 0083 | 51.09101-7021 |
| BorgWarner | B2US | 12709700032 | 1270 970 0032 | -- |
| BorgWarner | B2US | 12709700070 | 1270 970 0070 | -- |
| BorgWarner | B2US | 12709700100 | 1270 970 0100 | -- |
| BorgWarner | B2US (R2S) | 12709700171 | 1270 970 0171 | -- |
| BorgWarner | B2 | 12739700001 | 1273 970 0001 | 11658506382 |
| BorgWarner | B2 | 12739700009 | 1273 970 0009 | 11658506382 |
| BorgWarner | B2 | 12739700010 | 1273 970 0010 | 11658506382 |
| BorgWarner | B2 | 12739700018 | 1273 970 0018 | 11658506382 |
| BorgWarner | S200G | 57749702200 | 5774 970 2200 | 612600118895 |
BW-03-0031 - Part Properties
Blades (Compressor wheel blades count): 7/7
Rotation (Compressor wheel rotation direction): Standard
Type (Compressor wheel production method type): Cast
Back (Compressor wheel back design): Super

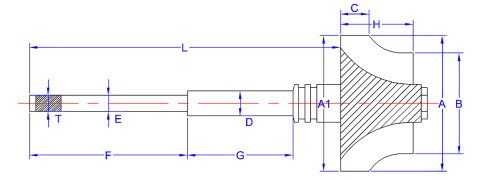

A (Size A): 84.60
A1 (Size A1): 84.60
B (Size B): 58.80
C (Size C): 5.90
C1 (Size C1): 5.20
D (Size D): 43.40
E (Size E): 7.00
