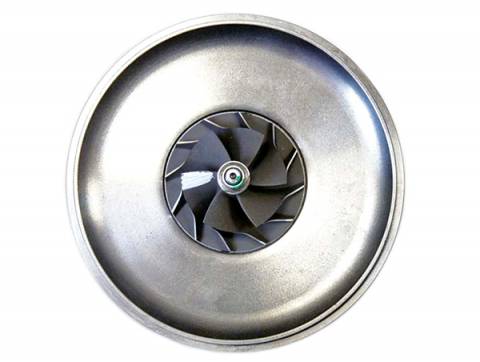

Compressor wheel 06J145702S
Parametry
- Producent:TurboCentras
- Numer seryjny:IH-03-0015
- Główny numer:CW-0563, IH-03-0015
- OEM numer:9VA08, 9VA15, VIFR, VIFV, VIHG, VIDZ, VIFE, VIJJ, VP71, VP67
O produkcie
IH-03-0015 - Compressor wheel
Marka: TurboCentras
TurboCentras Reference: IH-03-0015
IH-03-0015 - Alternative numbers
TCP (TurboCentras part number): IH-03-0015
IH-03-0015 - Compatibility table
| Compressor wheel IH-03-0015 - Compatible turbochargers | ||||
|---|---|---|---|---|
| TURBO MAKER | TURBO MODEL | TURBO REFERENCE | TURBO PART NUMBER | TURBO OE NUMBER |
| IHI | RHF4 | 9VA08 | 9VA08, F41CEG-SR030B | 06L145654, 06L145654A, 06L145654C, 06L145654D, 06L145654E, 06L145654F, 06L145654G, 06L145701, 06L145701A, 06L145701B, 06L145701C, 06L145701D, 06L145701E, 06L145701F, 06L145701G, 06L145701H, 06L145701J, 06L145701K, 06L145701L |
| IHI | RHF5 | 9VA15 | 9VA15, F51CAY-SR038B | 06J145702Q, 06J145702S, 06J145703T, 06J145713A, 06J145713F, 06J145722A |
| IHI | RHF4H-64006P12NHBRL3930CEZ | VIDZ | 4T-505, F41CAD-S0076B, F41CAD-S0076G, V*420076, VA420076, VB420076, VC420076, VIDZ, VP63 | 1118010-PA11, 8973311850, 8973311851 |
| IHI | RHF4H-68006P14NHBRL4113CEZ | VIFE | CIFE, F41CAT-S0114B, F41CATS0114B, VA420114, VB420114, VIFE | 8980118922, 8980118923 |
| IHI | RHF5-64006P17NHBRL4113CUETZ | VIFR | F51CAD-S0132B, F51CAD-S0132G, VA430132, VB430132, VIFR | 8980151151, 8980151152 |
| IHI | RHF5 | VIFV | F51CAD-S0144B, F51CAD-S0144G, VIFV | 8980540111 |
| IHI | RHF4 | VIHG | VIHG | 8982687030 |
| IHI | RHF4 | VIJJ | F41CAD-S0238B, F41CAD-S0238G, VIJJ | 8982537691 |
| IHI | RHF4 | VP67 | VP67 | EP1-6K682-AC |
| IHI | RHF4 | VP71 | JQP53, VP71 | 1118010-A02-AA |
IH-03-0015 - Part Properties
Blades (Compressor wheel blades count): 6/6
Rotation (Compressor wheel rotation direction): Standard
Type (Compressor wheel production method type): Cast
Back (Compressor wheel back design): Super

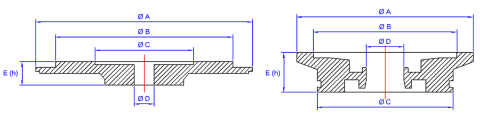

A (Size A): 52.50
A1 (Size A1): 52.50
B (Size B): 40.70
C (Size C): 4.55
C1 (Size C1): 1.30
D (Size D): 27.00
E (Size E): 5.10
IH-03-0015
06L145654, 06L145654A, 06L145654C, 06L145654D, 06L145654E, 06L145654F, 06L145654G, 06L145701, 06L145701A, 06L145701B, 06L145701C, 06L145701D, 06L145701E, 06L145701F, 06L145701G, 06L145701H, 06L145701J, 06L145701K, 06L145701L, 9VA08, F41CEG-SR030B, 06J145702Q, 06J145702S, 06J145703T, 06J145713A, 06J145713F, 06J145722A, 9VA15, F51CAY-SR038B, 1118010-PA11, 4T-505, 8973311850, 8973311851, F41CAD-S0076B, F41CAD-S0076G, V*420076, VA420076, VB420076, VC420076, VIDZ, VP63, 8980118922, 8980118923, CIFE, F41CAT-S0114B, F41CATS0114B, VA420114, VB420114, VIFE, 8980151151, 8980151152, F51CAD-S0132B, F51CAD-S0132G, VA430132, VB430132, VIFR, 8980540111, F51CAD-S0144B, F51CAD-S0144G, VIFV, 8982687030, VIHG, 8982537691, F41CAD-S0238B, F41CAD-S0238G, VIJJ, EP1-6K682-AC, VP67, 1118010-A02-AA, JQP53, VP71
Data updated: 2023-05-23 11:01:59
