Wałek turbiny do 54399700006

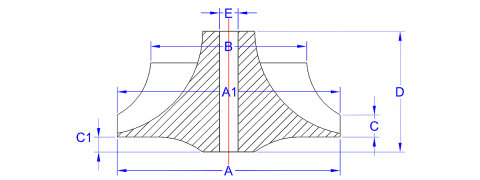

Wymiary Wałka turbiny:

Blades (Shaft & Wheel blades count): 9

Rotation (Shaft & Wheel rotation direction): Standard

Type (Shaft & Wheel type): Straight

Back (Shaft & Wheel back type): Full

P.R. (Shaft & Wheel piston rings count): Single

A (Size A): 38.50

A1 (Size A1): 38.50

B (Size B): 37.50

C (Size C): 6.45

D (Size D): 6.00

E (Size E): 4.10

H (Size H): 15.80

L (Size L): 83.00

T (Size T): M4.0X0.5LH

Wałek turbiny pasuję do następujących turbosprężarek:

• 54399700006 54399700007 54399700008 54399700009 54399700010 54399700011 54399700013 54399700017 54399880017 54399900017, 713672-0005, 713672-0006 768331-0001 768331-0002 54399700018 54399880018 54399700019 54399880019 54399900019 54399700020 54399880020 54399900020 54399700021 54399880021 54399700022 54399710022 54399880022, 54399900022 54399700024 54399880024 54399700026 54399700029 54399710029 54399880029 54399900029 54399700031 54399710031 54399880031 54399700048 54399700056 54399700057 54399700058 54399710058 54399880058 54399900058 54399700067 54399700084 54399880084 54399700085 54399880085 54399720058 54399730058 54399710057 54399880057
• 038253010G 038253016L 038253056A 038253010H 038253016N 038253010M 038253016J 038253010N 038253019J 038253010J 038253016M 038253056B 038253010P 038253016R 038253056G 038253016P 038253010A 038253010S 038253014A 038253019C 03G253014R 03G253016L 03G253016N 038253014D 038253010B 038253014B 038253010C 038253014H 038253014F 038253010D 038253014G 038253056E 038253014E 038253019S 03G253019K 038253014Q 03G253019J 38253016 03G253010C 03G253016F 03G253010D 03G253016G 03G253016J 2X0253019A 2X0253019B 2X0253019A 2X0253019 03G253016F
