Shaft and wheel for 822182-0004

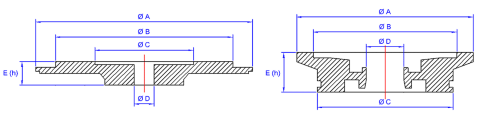

Dimensions of the Shaft and wheel:

Blades (Shaft & Wheel blades count): 9

Rotation (Shaft & Wheel rotation direction): Standard

Type (Shaft & Wheel type): Slender

Back (Shaft & Wheel back type): Full

P.R. (Shaft & Wheel piston rings count): Twin

A (Size A): 47.00

A1 (Size A1): 47.00

B (Size B): 43.10

C (Size C): 9.30

D (Size D): 7.00

E (Size E): 5.08

H (Size H): 25.00

L (Size L): 99.00

T (Size T): M5.0X0.8LH

Shaft and wheel fits to the next turbochargers:

• 822182-0004 822182-5004S 822182-0005 822182-5005S 822182-0007 822182-5007S 822182-0008 822182-5008S 822182-0009 822182-5009S 822182-0010 822182-5010S 822182-0011 822182-5011S 822182-0012 822182-0013 822182-5013S 822182-0014 822182-5014S 833715-0005 833715-5005S 833715-0006 833715-0007 833715-5007S 833715-0008 833715-5008S 833718-0005 833718-5005S 833718-0006 833718-5006S 833884-0001 833884-5001S 839077-0002 839077-5002S 839077-0008 839077-5008S 839077-0009 839077-5009S 839077-0011 839077-1011 839077-5011S 880026-0001 880026-5001S 881651-0001 881651-5001S 888580-0001 888580-5001S 889939-0001 889939-5001W 889939-0003 889939-5003W 892460-0001 892460-5001S
• FB3Q 6K682 DB FB3Q 6K682 PA FB3Q6K682PB FB3Q6K682DD FB3Q6K682PC FB3Q6K682DE FB3Q6K682PD FB3Q6K682DF FB3Q6K682PE 851356803 851356805 851356805 851358304 851358304 059145873BC 059145873BP 059145873CH 059145873CL 059145873DB 059145873ES 059 145 873 EN 059 145 873 FA 059145873FA FB3Q6K682DD* 059145873FM
