Shaft&wheel for C61CND-S0080B 119195-18030

Replacement part numbers for turbochargers or the turbocharger models for which the part covered by this offer is designed:

IH-03-0043 - Compatibility table

Compressor wheel IH-03-0043 - Compatible turbochargers

TURBO MAKER	TURBO MODEL	TURBO REFERENCE	TURBO PART NUMBER	TURBO OE NUMBER
IHI	RHC61W-1063P18NWBRLL4715CC	MYAV	C61CND-S0080B, C61CND-S0080G, MYAV, VA240080, VB240080, VC240080, VD240080	119195-18030, 119195-18031
IHI	RHC61W-943P18NWBRLL4715CC	MYBC	C61CND-S0083B, MYBC, V*240083, VA240083, VB240083, VC240083, VD240083	119195-18020, 119195-18021
IHI	RHC61W-1183P18NWBRLL4715CC	MYBF	C61CND-S0086B, MYBF, V*240086, VA240086, VB240086, VC240086, VD240086	119172-18010, 119172-18011
IHI	RHC6	MYDA	MYDA	--
IHI	RHC61W-1063P16NWBRLL4715CC	MYDH	C61CND-S0101B, C61CND-S0101G, MYDH, V*240101, VA240101, VB240101, VC240101, VD240101	119173-18040, 119173-18041
IHI	RHC6	MYDN	MYDN	--

IH-03-0043 - Part Properties

Blades (Number of compressor wheel blades): 6/6

Rotation (Compressor wheel rotation direction): Standard

Type (Compressor wheel production method): Cast

Back (Compressor wheel back design): Super

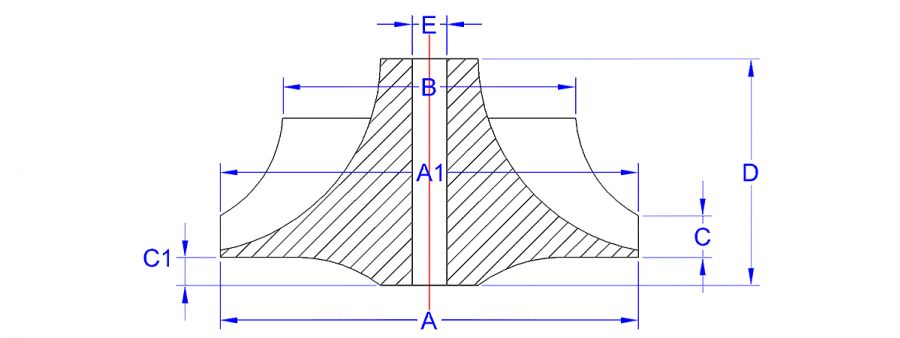

A (Size A): 69.00

A1 (Size A1): 69.00

B (Size B): 46.80

C (Size C): 5.50

C1 (Size C1): 4.25

D (Size D): 36.50

E (Size E): 7.10

---

IH-03-0043, NH265520

---

119195-18030, 119195-18031, C61CND-S0080B, C61CND-S0080G, MYAV, VA240080, VB240080, VC240080, VD240080, 119195-18020, 119195-18021, C61CND-S0083B, MYBC, V*240083, VA240083, VB240083, VC240083, VD240083, 119172-18010, 119172-18011, C61CND-S0086B, MYBF, V*240086, VA240086, VB240086, VC240086, VD240086, MYDA, 119173-18040, 119173-18041, C61CND-S0101B, C61CND-S0101G, MYDH, V*240101, VA240101, VB240101, VC240101, VD240101, MYDN

---

Date updated: 2025-02-04 5:12:07 PM
