Turbocharger cartridge - Quality matters

"How can there be a difference in cartridges when they're all made in China?" - this question is heard in workshops almost daily. Customers often don't understand why they should pay several times more for seemingly identical products. As turbocharger specialists, we explain exactly where the difference lies between cheap and expensive offers and why the higher price has technical justification.

The Myth of Chinese Production

Indeed, most turbocharger parts are now manufactured in Asia - mainly in China and India. This is a global trend affecting virtually all industries. However, just as with electronics or other products, there's an enormous quality range here as well.

The key difference lies in technical details that cannot be assessed "by eye" without specialist knowledge and measuring equipment.

Turbocharger CHRA and Parameters Determining Its Quality

1. Dimensional Precision

Dimensional Precision Manufacturing tolerances cannot exceed 0.2 mm. Even minimal deviations cause the turbine to fail to achieve optimal operating parameters, resulting in:

  • Reduced efficiency
  • Increased fuel consumption
  • Premature failures

2. Material Quality Turbine wheel

Turbine Shaft&wheel: Original turbine wheels contain 70-75% nickel, while cheaper alternatives often limit themselves to 40%. This seemingly small difference allows production costs to be reduced by 50%, but dramatically affects component longevity.

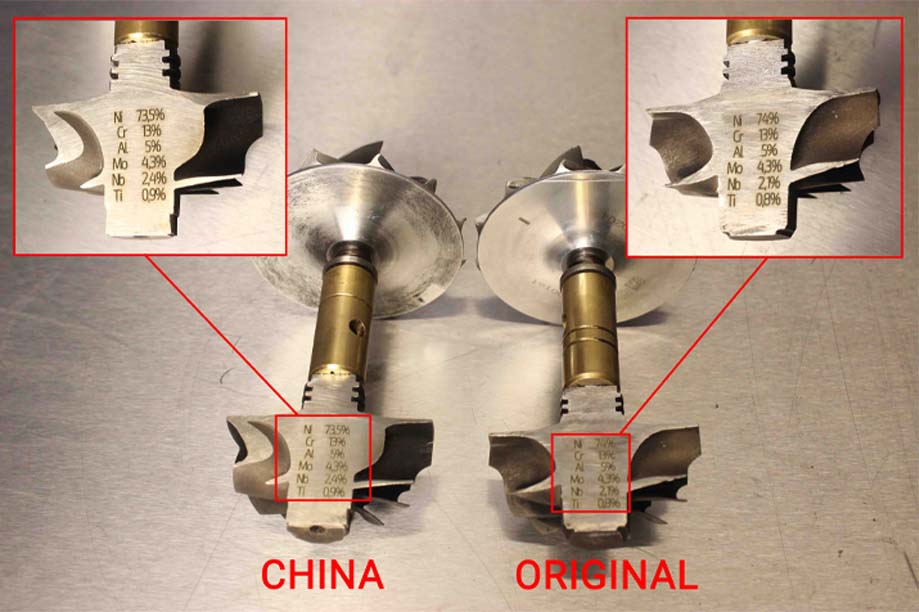

Comparison of original and replaement shaft&wheel

Compressor Wheel: At speeds reaching 250,000 rpm, centrifugal forces reach critical values. Using the wrong aluminum alloy can lead to complete destruction of the compressor wheel during operation.

3. Bearing Production Technology

Bearings made using powder pressing technology will never match the thermal-conductivity properties of bearings rolled from high-quality brass. This difference is particularly significant under high-temperature turbocharger operating conditions.

The Most Important Element - Precise Balancing

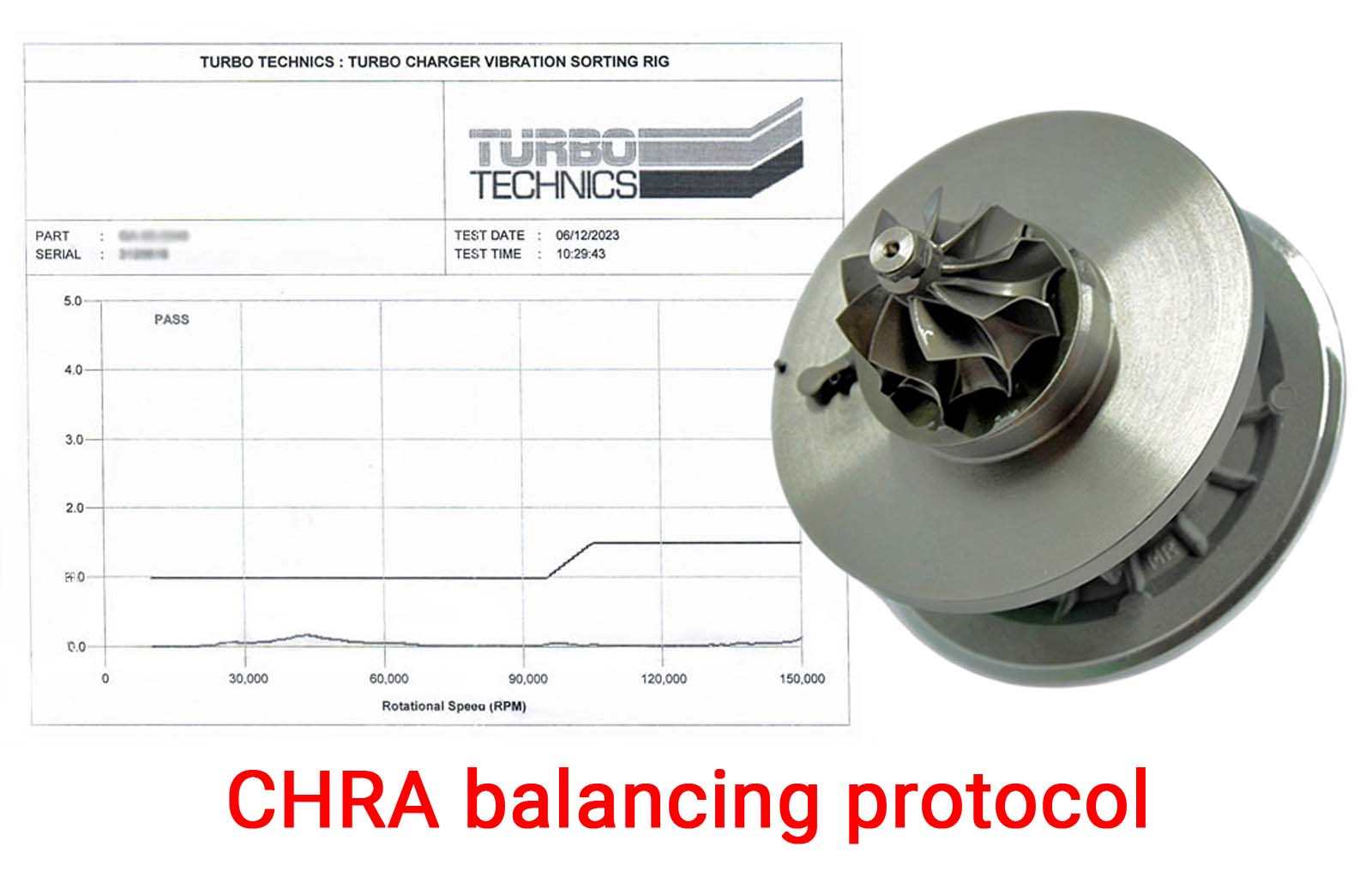

Turbo cartidge balancing protocol

CHRA balancing is the process that determines how long the turbo assembly will maintain its longevity. Similar to car tires, improper balancing causes vibrations and beating. However, at turbocharger speeds, a difference of just 0.3 grams can be critical.

Step-by-step Balancing Process:

  1. Acceleration to maximum operating speeds on specialized machinery
  2. Vibration measurement at each speed range
  3. Correction by removing material from the compressor wheel or nut
  4. Compliance check with tolerance chart

The Problem of Savings in the Balancing Process

Perfect balancing often requires 5-10 tests and corrections. Some manufacturers, seeking to reduce costs, limit the number of attempts, settling for parameters at the lower tolerance limit.

Consequences of this approach:

  • New turbocharger CHRA initially works correctly
  • Normal oil deposits and operational wear quickly cause imbalance
  • Premature damage or noisy turbine operation

Quality Standards in Practice

Top-class manufacturers like Turbocentras UAB use precision English-made balancing machines (e.g., Turbo Technics VSR400 - from a company producing turbocharger regeneration machines), which additionally control oil flow through the turbo core assembly during balancing. This eliminates operator errors and guarantees optimal parameters.

Quality Economics - Investment or Cost?

By choosing a cheaper CHRA, mechanics and customers seemingly save several hundred zloty. However, the real costs are:

  • Re-replacement after 6-9 months
  • Dismantling and installation costs
  • Loss of customer trust
  • Potential engine damage

A high-quality cartridge is an investment that pays back multiple times through long-term, trouble-free operation.

Recommendations for Workshops

  1. Choose proven suppliers with certified production processes
  2. Don't be guided solely by price - compare technical parameters
  3. Check component origins and balancing technologies
  4. Educate customers about quality differences

Remember: there's no room for compromise in turbochargers. Component quality and precision of execution are the foundation of long-term, reliable operation.
