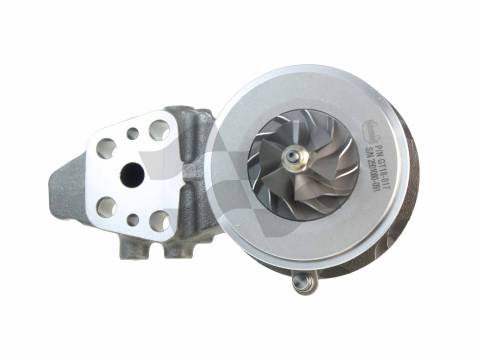

Крыльчатка компрессора 703206-0001
Параметры
- Производитель:
TurboCentras
- Серийный номер:
GA-03-0074
- Основной номер:
GT20-03, 702492-0011, GA-03-0074, 702492-0002, CW-0359
- OEM-номер:
718089-0001, 718089-0002, 718089-0003, 718089-0004, 718089-0005, 718089-0006, 718089-0008, 742807-0003, 742807-0005, 742809-0005, 742810-0003, 742810-0007, 755299-0001, 755299-0003, 755299-0005, 755299-0006, 755300-0001, 755300-0003, 755300-0005, 755300-0006, 755300-0007, 718089-0007, 727271-0010, 727271-0011, 703206-0001, 718089-0010, 723212-0001, 723212-0003, 742805-0003, 742805-0005, 742807-0001, 742807-0002, 742810-0005, 755297-0001, 755297-0003, 755297-0004, 755297-0005
О товаре
GA-03-0074 - Крыльчатка компрессора
Бренд: TurboCentras
TurboCentras Артикул: GA-03-0074
GA-03-0074 - Альтернативные номера
GHP (Garrett original part number): 702492-0002
GHP (Garrett original part number): 702492-0011
TCP (TurboCentras part number): GA-03-0074
TCO (TurboCentras old part number): GT20-03
GA-03-0074 - Таблица совместимости
| Крыльчатка компрессора GA-03-0074 - Совместимые турбокомпрессоры | ||||
|---|---|---|---|---|
| ПРОИЗВОДИТЕЛЬ ТУРБИНЫ | МОДЕЛЬ ТУРБИНЫ | АРТИКУЛ ТУРБИНЫ | TURBO PART NUMBER | OE НОМЕР ТУРБИНЫ |
| Garrett | GT18 | 703206-0001 | 703206-0001 | -- |
| Garrett | GT1852V | 718089-0001 | 718089-0001, 718089-5001S | 8200106870 |
| Garrett | GT1852V | 718089-0002 | 718089-0002, 718089-5002S | 8200139476 |
| Garrett | GT1852V | 718089-0003 | 718089-0003, 718089-5003S | 8200176856 |
| Garrett | GT1852V | 718089-0004 | 718089-0004, 718089-5004S | 8200060089 |
| Garrett | GT1852V | 718089-0005 | 718089-0005, 718089-5005S | 8200267138 |
| Garrett | GT1852V | 718089-0006 | 718089-0006, 718089-5006S | 8200267138 |
| Garrett | GT1852V | 718089-0007 | 718089-0007, 718089-5007S | 8200447624A |
| Garrett | GT1852V | 718089-0008 | 718089-0008, 718089-5008S | 8200683860 |
| Garrett | GT1852V | 718089-0010 | 718089-0010 | -- |
| Garrett | GT2052S | 722687-0001 | 722687-0001 | 14411-7F411 |
| Garrett | GT1852V | 723212-0001 | 723212-0001 | 07Z145701Q |
| Garrett | GT1852V | 723212-0003 | 723212-0003 | 07Z145701Q |
| Garrett | GTA1852V | 727271-0006 | 727271-0006 | 8200459492A |
| Garrett | GTA1852V | 727271-0007 | 727271-0007 | 8200459638A |
| Garrett | GTA1852V | 727271-0008 | 727271-0008 | 8200636481 |
| Garrett | GTA1852V | 727271-0009 | 727271-0009 | 8200636483 |
| Garrett | GT18 | 727271-0010 | 727271-0010 | -- |
| Garrett | GT18 | 727271-0011 | 727271-0011 | -- |
| Garrett | GT1852V | 742805-0003 | 742805-0003 | 07Z145701PV620 |
| Garrett | GT1852V | 742805-0005 | 742805-0005 | 07Z145701RV621 |
| Garrett | GT1852V(S2) | 742807-0001 | 742807-0001 | -- |
| Garrett | GT1852V(S2) | 742807-0002 | 742807-0002 | 07Z145702J |
| Garrett | GTA1852VK | 742807-0003 | 742807-0003 | 07Z145702KV620 |
| Garrett | GTA1852VK | 742807-0005 | 742807-0005 | 07Z145702MV621 |
| Garrett | GTA1852VK | 742809-0001 | 742809-0001 | 07Z145701Q |
| Garrett | GTA1852VK | 742809-0002 | 742809-0002 | 07Z145703Q |
| Garrett | GTA1852VK | 742809-0003 | 742809-0003 | 07Z145701QV662 |
| Garrett | GTA1852VK | 742809-0004 | 742809-0004 | 07Z145703Q |
| Garrett | GT1852V (S2) | 742809-0005 | 742809-0005 | -- |
| Garrett | GTA1852VK | 742809-0006 | 742809-0006 | 07Z145703T |
| Garrett | GTA1852VK | 742809-0007 | 742809-0007 | 07Z145701TV671 |
| Garrett | GTA1852VK | 742809-0008 | 742809-0008 | 07Z145703T |
| Garrett | GT1852V (S2) | 742810-0003 | 742810-0003 | -- |
| Garrett | GT1852V(S2) | 742810-0005 | 742810-0005 | 07Z145702PV670 |
| Garrett | GT1852V (S2) | 742810-0007 | 742810-0007 | -- |
| Garrett | GT1852V(S2) | 755297-0001 | 755297-0001 | 07Z145873EV100 |
| Garrett | GT1852V(S2) | 755297-0003 | 755297-0003 | 07Z145873GV101 |
| Garrett | GT1852V(S2) | 755297-0004 | 755297-0004 | 07Z145907GV101 |
| Garrett | GT1852V(S2) | 755297-0005 | 755297-0005 | 07Z145873GV102 |
| Garrett | GT1852V(S2) | 755298-0001 | 755298-0001 | 07Z145874EV100 |
| Garrett | GT1852V(S2) | 755298-0003 | 755298-0003 | 07Z145874GV101 |
| Garrett | GT1852V(S2) | 755298-0004 | 755298-0004 | 07Z145908GV101 |
| Garrett | GT1852V(S2) | 755298-0005 | 755298-0005 | 07Z145874GV102 |
| Garrett | GT1852V (S2) | 755299-0001 | 755299-0001 | -- |
| Garrett | GTA1852VK | 755299-0002 | 755299-0002 | 07Z145907D |
| Garrett | GT1852V (S2) | 755299-0003 | 755299-0003 | -- |
| Garrett | GTA1852VK | 755299-0004 | 755299-0004 | 07Z145907D |
| Garrett | GT1852V (S2) | 755299-0005 | 755299-0005 | -- |
| Garrett | GT1852V (S2) | 755299-0006 | 755299-0006 | -- |
| Garrett | GTA1852VK | 755299-0007 | 755299-0007 | 07Z145873H |
| Garrett | GTA1852VK | 755299-0008 | 755299-0008 | 07Z145907H |
| Garrett | GTA1852VK | 755300-0001 | 755300-0001 | 07Z145874DV100 |
| Garrett | GTA1852VK | 755300-0003 | 755300-0003 | 07Z145874DV200 |
| Garrett | GT1852V(S2) | 755300-0004 | 755300-0004 | -- |
| Garrett | GTA1852VK | 755300-0005 | 755300-0005 | 07Z145874HV101 |
| Garrett | GTA1852VK | 755300-0006 | 755300-0006 | 07Z145908HV101 |
| Garrett | GTA1852VK | 755300-0007 | 755300-0007 | 07Z145874H |
| Garrett | GT2252S | 764070-0001 | 764070-0001 | -- |
| Garrett | GT2252S | 764070-0003 | 764070-0003 | 253414510116 |
GA-03-0074 - Свойства детали
Blades (Compressor wheel blades count): 6/6
Rotation (Compressor wheel rotation direction): Standard
Type (Compressor wheel production method type): Cast
Back (Compressor wheel back design): Super
A (Size A): 52.00
A1 (Size A1): 52.00
B (Size B): 36.80
C (Size C): 3.75
C1 (Size C1): 2.40
D (Size D): 26.00
E (Size E): 5.08
702492-0002, 702492-0011, GA-03-0074, GT20-03
703206-0001, 718089-0001, 718089-5001S, 8200106870, 718089-0002, 718089-5002S, 8200139476, 718089-0003, 718089-5003S, 8200176856, 718089-0004, 718089-5004S, 8200060089, 718089-0005, 718089-5005S, 8200267138, 718089-0006, 718089-5006S, 8200267138, 718089-0007, 718089-5007S, 8200447624A, 718089-0008, 718089-5008S, 8200683860, 718089-0010, 14411-7F411, 722687-0001, 07Z145701Q, 723212-0001, 07Z145701Q, 723212-0003, 727271-0006, 8200459492A, 727271-0007, 8200459638A, 727271-0008, 8200636481, 727271-0009, 8200636483, 727271-0010, 727271-0011, 07Z145701PV620, 742805-0003, 07Z145701RV621, 742805-0005, 742807-0001, 07Z145702J, 742807-0002, 07Z145702KV620, 742807-0003, 07Z145702MV621, 742807-0005, 07Z145701Q, 742809-0001, 07Z145703Q, 742809-0002, 07Z145701QV662, 742809-0003, 07Z145703Q, 742809-0004, 742809-0005, 07Z145703T, 742809-0006, 07Z145701TV671, 742809-0007, 07Z145703T, 742809-0008, 742810-0003, 07Z145702PV670, 742810-0005, 742810-0007, 07Z145873EV100, 755297-0001, 07Z145873GV101, 755297-0003, 07Z145907GV101, 755297-0004, 07Z145873GV102, 755297-0005, 07Z145874EV100, 755298-0001, 07Z145874GV101, 755298-0003, 07Z145908GV101, 755298-0004, 07Z145874GV102, 755298-0005, 755299-0001, 07Z145907D, 755299-0002, 755299-0003, 07Z145907D, 755299-0004, 755299-0005, 755299-0006, 07Z145873H, 755299-0007, 07Z145907H, 755299-0008, 07Z145874DV100, 755300-0001, 07Z145874DV200, 755300-0003, 755300-0004, 07Z145874HV101, 755300-0005, 07Z145908HV101, 755300-0006, 07Z145874H, 755300-0007, 764070-0001, 253414510116, 764070-0003
